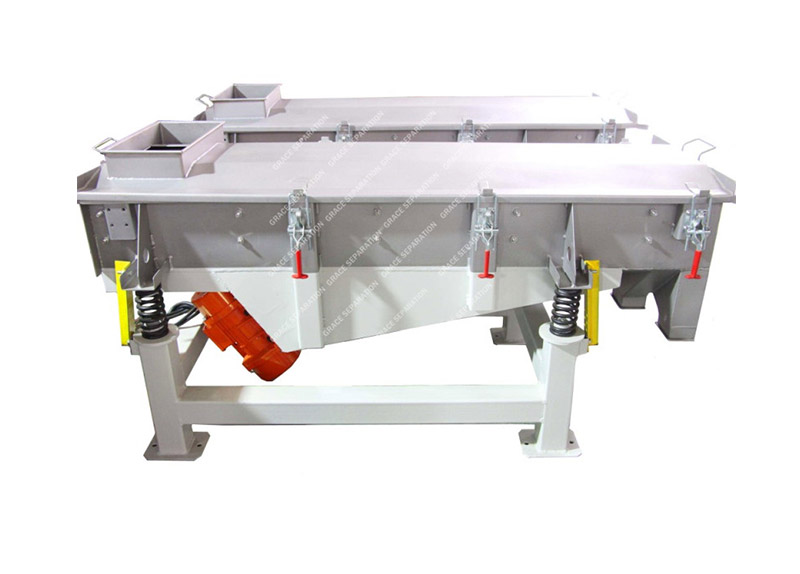

1-7 Layers Linear Vibrating Separator
Linear vibrating separator use excellent vibrating motor as power source, that the materials can be thrown up on the sieve and forward to make a straight movement.
It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.
Application scope: Bulk screening for granules and powder in chemical industry, food industry, metallurgy/mining industry, medical industry etc..
Usage : Removing impurities or grading
Capacity : 0.1-10 CBM/HOUR.
Delivery detail : 10-15 working days.
Model
GZX-520
GZX-525
GZX-1020
GZX-1025
GZX-1030
Screen Size(mm)
500×2000
500×2500
1000×2000
1000×2500
1000×3000
Material Granularity
0.074 – 10 mm
Angle
1°-7°
1°-7°
1°-7°
1°-7°
1°-7°
Amplitude(mm)
3-5
3-5
3-5
3-5
3-5
Layer
1-6
1-6
1-6
1-6
1-6
Power
2x(0.37-0.75)
2x(0.37-0.75)
2x(0.55-1.1)
2x(0.55-1.1)
2x(0.55-1.1)
Our rectangular separators are built for high-capacity, multi-stage screening. Ideal for dry or wet processing of materials like powders, granules, and pellets.
