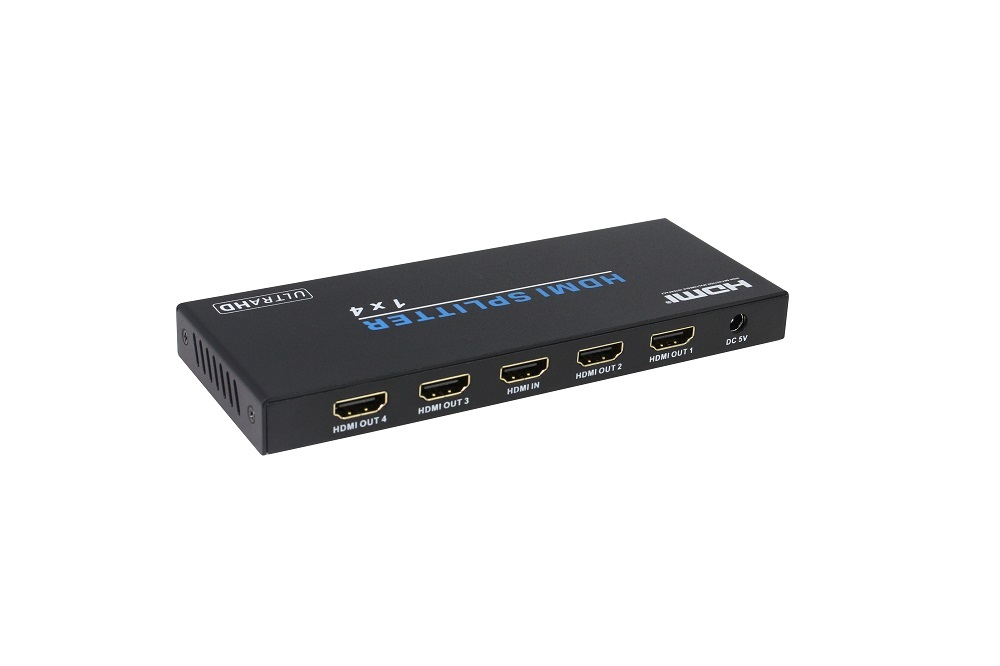

1 INPUT TO 4 OUTPUT HDMI SPLITTER
1 Input to 4 Output HDMI Splitter4 Way HDMI Splitter with HDCP and EDID SettingsThis 4 output HDMI high bandwidth Splitter is an advanced solution for splitting a HDMI signal to fourHDMI displays. It provides high performance audio and video output through HDMI cables up to 1080p High Definition video with no data loss. Compliant with HDCP2.2 and DVI 1.0;Support video format up to 1080P@60Hz;Support 3D frame sequential video format up to 1080p@60;Support high resolution VESA mode video format up to QSXGA@60Hz;Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;Supports smart EDID control;Package1. UHD 1×4 HDMI Splitter —————————————————————— 1PC2. 5V2A DC Power adapter —————————————————————– 1PC3. Operation Manual ————————————————————————- 1PCSpecifications1. Video Bandwidth 600MHz/18Gbps2. Input Ports 1 × HDMI (Female type)3. Output Ports 4 × HDMI (Female type),4. Output Resolution Up to 1080P@60Hz5. ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)8. Power Supply 5V/2A DC (US/EU standards, CE/FCC/UL certified)9. Dimensions 63 mm (W) × 163 mm (D) × 16 mm (H)10. Weight 275 g 11. Chassis Material Metal12. Operating Temperature 0 °C~40 °C/ 32 °F~104 °F13. Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F14. Relative Humidity 20~90 % RH (non-condensing)15. Power Consumption (Max) 10W
