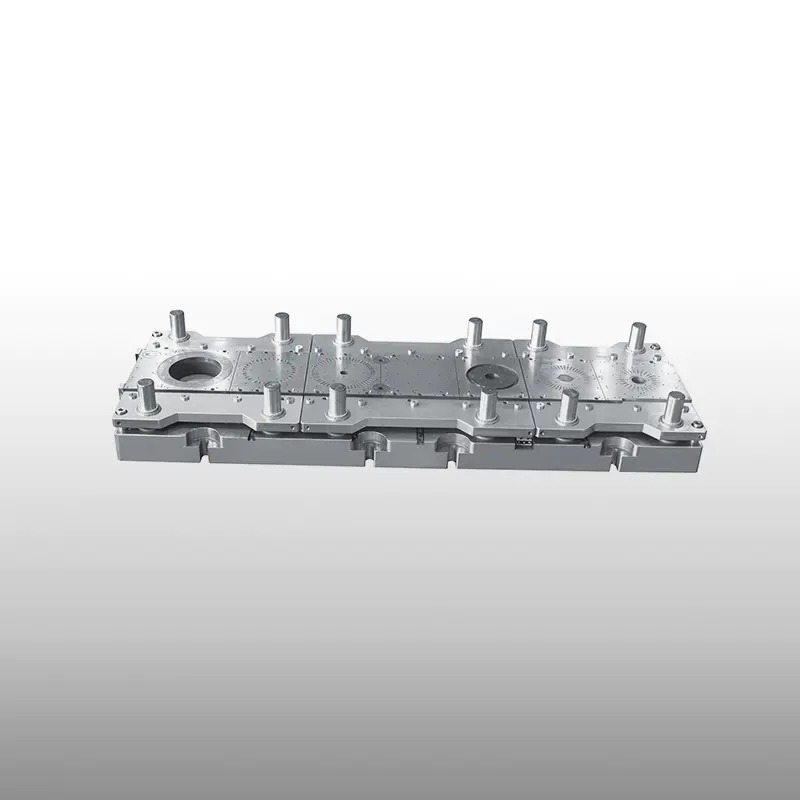

260 Single-row Progressive Lamination Stamping Mold
Specification Parameters
Comprehensive life:≥160 million punchesBlade die life: ≥5 million strokes/0.1mmMold structure:Three-plate mold base + ball guideEffective cutting edge height:≥8mmBlade material: DJ40Grooved die form:Punch grooved die, slow wire finishing, the punch is polished using a special process to remove the oxidation layerGuide parts: Precision + high hardnessBlanking speed during running-in period:80-280 punches/minuteBlanking speed: 280-300 punches/minuteConcentricity:≦0.05mmProtection device: Equipped with misfeed protection devicePunching burr: ≦0.05mmRiveting force: 30NSafety device:Misfeed detection + equal height limit columnProduct output form: Conveyor beltRotor control deviceChute control devicePlate control device:CylinderMold base material:Upper and lower mold seats P20. middle unloading seat P20. the second and fourth levels are made on the same set of molds and are interchangeable during production. The shaft hole can be used for three interchangeable pumping plates.Spare parts provided: 30% of wearing partsInternal plate material: Cr12MOV
