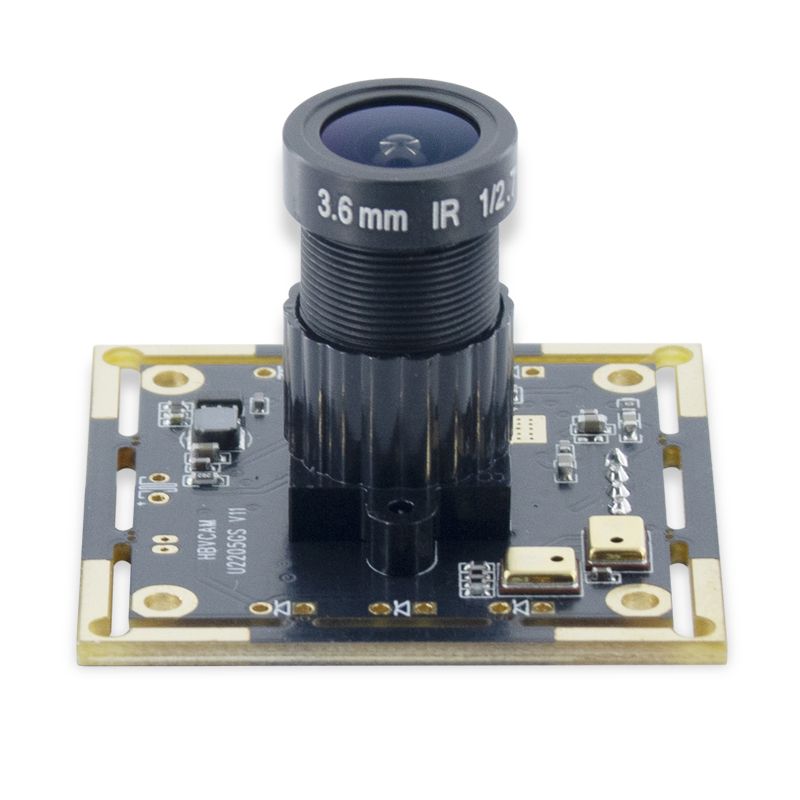

2MP USB2.0 OG02B10 120FPS Colorful Global Shutter Camera Module With Microphone
1. Standard industrial camera 38*38mm& 32mm*32mm board structure
2. The chip can choose color or black and white images (OG02B10/OG02B1B)
3. Can add 6 plugins for welding white light – can be made into an on/off image or photosensitive control – can be extended to the external frame light board
4. There is a reserved functional interface, which can customize software functions such as triggering, pulse output input, etc. (additional charge for customization)
5. Multi lens optional
2MP USB2.0 OG02B10 120FPS Colorful Global Shutter Camera Module With Microphone
Specification:
Module No.
HBVCAM-U2205GS V11
Module Size
38mm × 38mm × 18.00mm±0.5MM
Temperature (Operation)
-30°C to 70°C
Temperature (Stable Image)
0°C to 50°C
Assembly technique
SMT (ROSH)
Focus
Fixed
Object distance
30CM-infinity
Resolution
600LW/PH (Center)
PCB printing ink
Black
interface
USB 2.0
Power suuply
USB bus power
supply voltage
DC 5V±5%
Maximum Power consumption
890 mW
Operating system request
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Sensor
OG02B10 (1/2.9” )
Seneor Package
CSP,Bare Die
Maximum resolution
1600*1200
Sensitivity
1900mV /（lux-sec）
Pixel Size
3.0µm x 3.0µm
In addition to the standalone camera, the USB Global Shutter Camera Module is also available. This module is a versatile solution for those who need a camera that can be integrated into their existing systems. It features the same high-quality image capture capabilities as the standalone camera, but in a more compact and customizable package.
