800mm Diameter GRP/FRP Navigation Buoy
800mm Diameter GRP/FRP Navigation Buoy
Ø Description:

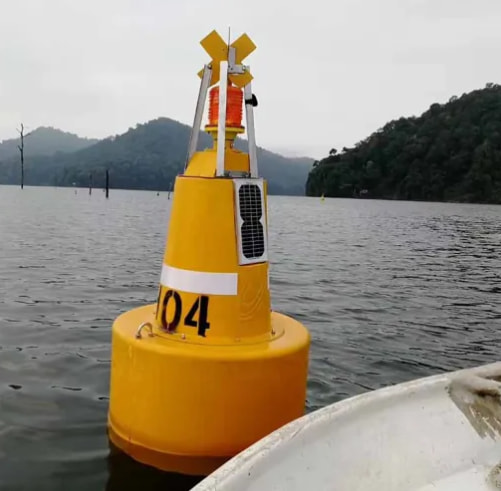

GRP-800 GRP/FRP Navigation Buoy is a 800mm diameter(float section) fiberglass reinforced plastic (GFRP) navigation buoy.
GRP-800 GRP/FRP Navigation Buoy is made of fiberglass reinforced plastic (GFRP) and filled with closed-cell elastic foam Polyurethane,which provides the buoy with great lightness and excellent mooring capacity.
The choice of material ensures no risk of corrosion and sulphation as well as excellent resistance to impact.
All bolts and nuts are all 316-grade stainless steel.
Ø Applications:
-Waterways
-Navigational channels
-Open sea applications
-River waterways
-Naval applications
Ø Features:
-With 2 lifting eyes and 1 mooring eye.
-Robust construction.
-Excellent mooring capacity
-Excellent resistance to collision
-Painting according to IALA Recommendations
-High visibility color as per IALA recommendations
Ø Technical specification:
Width
800mm
Focal plane height
1225mm
Nominal Free board
400mm
Nominal Draft
600mm
Total weight
115kgs
Reserve buoyancy
250kg
Float thickness
6mm
Color
Red, green,yellow,optional
Float material
GFRP
Super structure
GFRP
Mooring
¢20mm nylon rope or ¢12.5mm rise chain
Suitable sinker
Minimum weight 200kg
Ø Certifications:
-IALA(Surface colors compliant to IALA E-108)
-ISO9001:2015(Quality assurance)
-ISO14001:2015
-ISO45001:2018
Ø Options:
-Radar reflector
-Solar powered marine lantern
-Foaming of the buoy hull is optional
-Anti fouling paint for under water portion is optional.
-UHMWPE top mark
-Mooring solution available
Ø Export cases:
-To Tasik Kenyir, Malaysia
Ø Our service:
-On-site guidance for installation if by request.
-Warranty information: normally 12 months after deployment.
Ø Payment method:
-T/T
-L/C
