ADSS Preformed Suspension Clamp

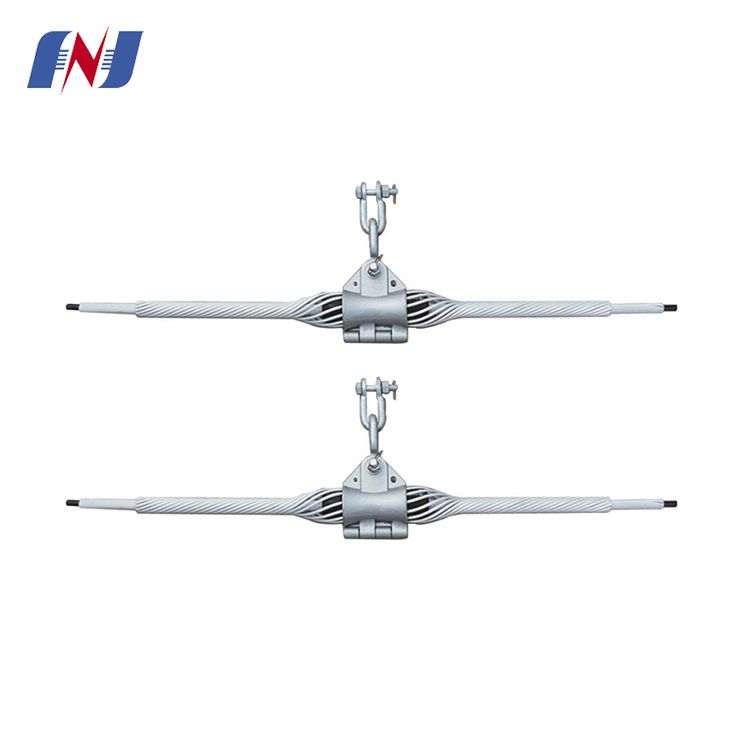

Composition: inner pre-twisted wire, the outer pre-twisted wire, rubber insert, cast aluminum shells, right-angle shackle, U-type shackle.
Product Description
Let us go visit
Composition: inner pre-twisted wire, the outer pre-twisted wire, rubber insert, cast aluminum shells, right-angle shackle, U-type shackle.
Purposes: supporting cable, make the ADSS hang on the tower.
Features:
a, stress on average, no concentration stress, protect cable better.
b, good dynamic stress. It can provide enough grip strength(14%RTS)
c, rubber clip block make abrasion low .
d. rounded end improve the corona voltage
e. excellent aluminum alloy improve the mechanical and resist-corrosion function, extend life.
Technical requirements: meet the DL / T 766-2003 ADSS with the preformed helical fittings technical requirements and test methods.
Ordering Information:
A. Choose the suitable XC suspension clamp according to the outer diameter, span, rated tension strength of ADSS cable etc. parameters
B. the quantity configuration: 1 set / line tower.
C. if the clamp need to install the corona coils and vibration damper, the inner performed wire need to prolong
D. clamp strength: 30KN, 50KN, 70KN etc.
Specifications Parameter table for ADSS with the XC preformed Suspension clamp:
Model
For span (m)
Length of inner rods
Length of outer rods
Clamp quality (kg)
AXC-200-**
101-200
1200
1000
2.7
AXC-300-**
201-300
1300
1100
2.8
AXC-400-**
301-400
1500
1200
2.9
AXC-500-**
401-500
1700
1300
3.1
AXC-600-**
501-600
1900
1500
4.0
AXC-700-**
601-700
2000
1600
4.1
AXC-800-**
701-800
2100
1700
4.3
Note: **– Cable diameter (mm)
