Cable tray
Metal Cable Tray is a perfect cable raceway system which is made of high-quality hot-dip zinc steel, stainless or aluminum alloy material. It offers excellent corrosion resistance.
The Cable tray including 3 type, cable trunking, cable tray and cable ladder. And we supply the corresponding bend, tee and cross and connection accessories on request.
Further more, we also can provide the FRP cable tray.
3 type cable tray support system feature & dimension list:

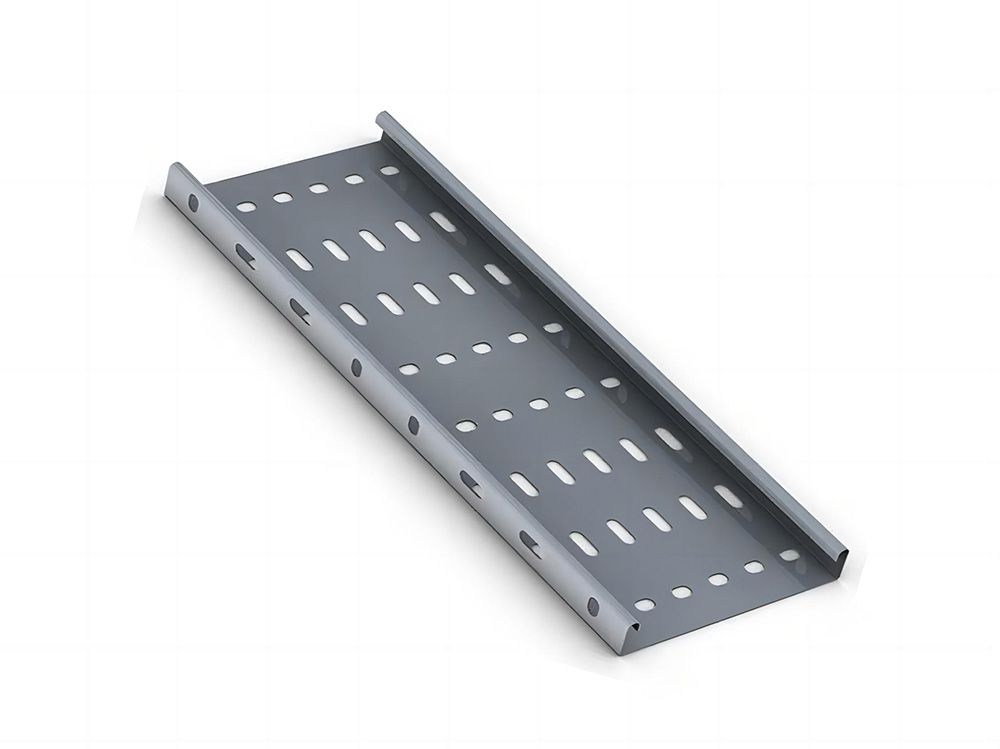

Tray type cable support system is ideal cable laying devices. It’s applicable for power cable and control cable both, most broadly applied in petroleum industry, chemical industry, power and light industries, televisions and telecommunication. It is featured by such advantage as small weight, great loading capacity, good-looking shape, simple structure, convenient erection, quick heat dissipation and fine permeability.
Ladder type cable support system is an improvement, combined with foreign relevant technical data. It features small weight, low cost, unique shaping, fine permeability and quick heat dissipation. It is applicable for laying big-diameter cables, especially high-voltage, low-voltage and power cables.
The cable tray and cable ladder two type general recommend dimension list:
Regular Wide(mm)
Regular height(mm)
200
60, 100, 150,200
300
60, 100, 150,200
400
60, 100, 150,200
500
60, 100, 150,200
600
60, 100, 150,200
800
60, 100, 150,200
Trunking type cable support system is fully enclosed cable support system. It is applicable for laying computer cables, communication cables, thermocouple cables and control cables of highly-sensitive systems. It works well in resisting interference of control cable shield and protecting the cables in seriously corrosive environment.
The cable trunking general dimension list:
Regular Wide(mm)
Regular height(mm)
50
25
100
50
150
75
200
100
250
125
300
150
400
100, 150,200
500
100, 150,200
600
100, 150,200
800
100, 150,200
Customization:
1. the type dimension: customer can choose the above regular dimension list or make OEM wide/height size on request, the length as per customer order request.
2. Material: can choose hot-dip galvanized steel, aluminum alloy, stainless steel or FRP on request.
3. Surface treatment: hot dip zinc coating thickness and color customized.
4. MOQ: negotiable
5. Packing and pricing: negotiable
6. Accessories: A full range of accessories to meet customer the different cable laying environment needs, meet the project procurement.
Cable tray system standard:
All of the cable tray system comply with international standard ISO9001 and CE EN61537.
If you want to learn more, please visit our website.
