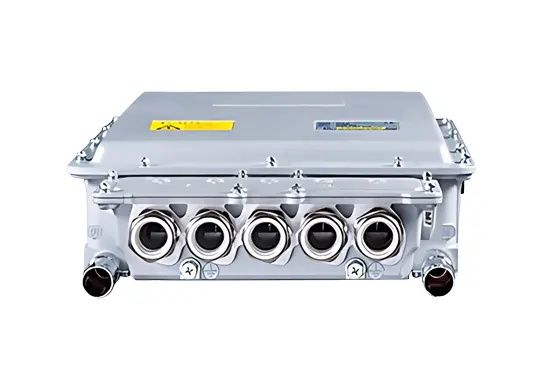

Commercial Vehicle Motor Controller
Technical features of the motor controller:
(1) use SVPWM modulation algorithm to improve the energy efficiency ratio of the power system;
(2) configure high-efficiency CAN communication module to control the normal operation of the system;
(3) have liquid temperature control system and excellent waterproof and moisture-proof performance to extend the use time of the product and the vehicle;
(4) adopt torque vector control mode to realize energy recovery and utilization;
(5) have perfect protection function to ensure the safe operation of the vehicle.
Specification of Commercial Vehicle Motor Controller
Product name
Main Drive Motor Controller
Applicable motor types
Permanent magnet synchronous motor & Three-phase asynchronous motor
Applicable models
logistics vehicle & medium-sized bus
Product model
V6-H-4D110G
V6-H-2D60G
Rated input voltage
DC 540V
DC 336V
Rated power
110kW
60kW
Input voltage ranges
DC 350-750V
DC 200-500V
Rated output current
210A
Maximum output current
350A
Output frequency ranges
0~800Hz
Water proof
IP67
Heat dissipation mode
water-cooling
Dimension
410*314*118mm, 336*314*118mm
Net weight
9.5kg, 8.5kg
Characteristics of Commercial Vehicle Motor Controller
Automotive motor controller features:
(1) High performance: the controller has a high overload capacity at low speeds (usually more than twice the rated current), and a wide weak magnetic constant machine capacity at high speeds.
(2) High torque: when the starting torque is large, the controller is required to output a larger current at low speed.
(3) Large speed: In the higher speed range, the drive system needs a larger constant power area, therefore, the controller is required to have a strong weak magnetic capability.
(4) High efficiency: The energy of new energy vehicles are valuable, and the efficiency of the drive system directly affects the range, so the high efficiency of the drive system is required to minimize the loss of the drive system.
