Compact Enclosed Laser Marking & Engraving Machine
Q Switched Fiber Laser Marker-(20-50W)SCF-QS SERIES
Model
SCF-QS20
SCF-QS30
SCF-QB50
Laser Generator
Laser Power(W)
20W
30W
50W
Frequency(kHz)
30-60kHz
30-60kHz
50-100kHz
Pulsed Width(ns)
130ns
130ns
130ns
Control System
Software
EZCAD2.14.11
Controller
FBLI-B-V4
Scanning System
Max. Marking Speed(mm/s)
6000mm/s (12000mm/s Optional)
Max. Marking Size (mm)
150*150mm(70*70, 100*100mm Optional)
Others
Power Supply
110V/220V Optional
Cable Length
3M (4/5M Optional)
Adjustable Z Lift Travel
250mm
Cooling Method
Air Cooling

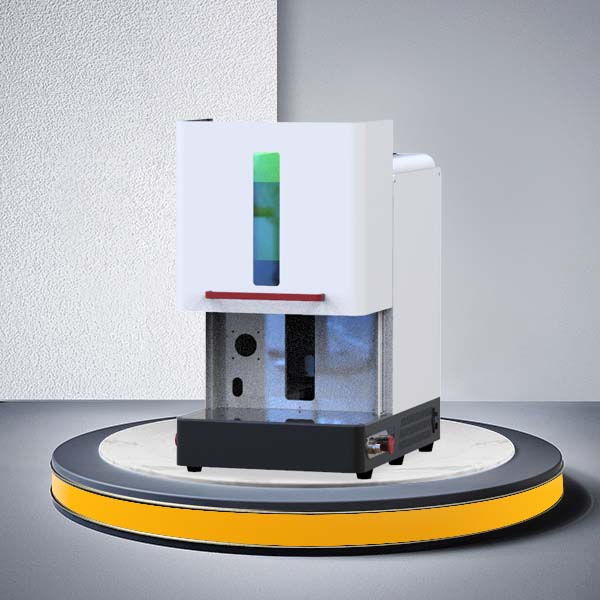

The Small Closed Fiber Laser Marking Machine is a compact, high-performance solution designed for precision and efficiency in metal engraving. Its enclosed structure ensures a clean and safe working environment, making it ideal for small businesses, workshops, and laboratories where space is limited. Despite its small size, this machine delivers exceptional marking quality on a wide range of metals, including stainless steel, aluminum, brass, and more.
Equipped with advanced fiber laser technology, this Laser Marking machine offers high-speed, high-precision engraving with long-lasting marks, even on tough metal surfaces. The fiber laser provides excellent beam quality, ensuring deep and fine engraving without compromising material integrity.
