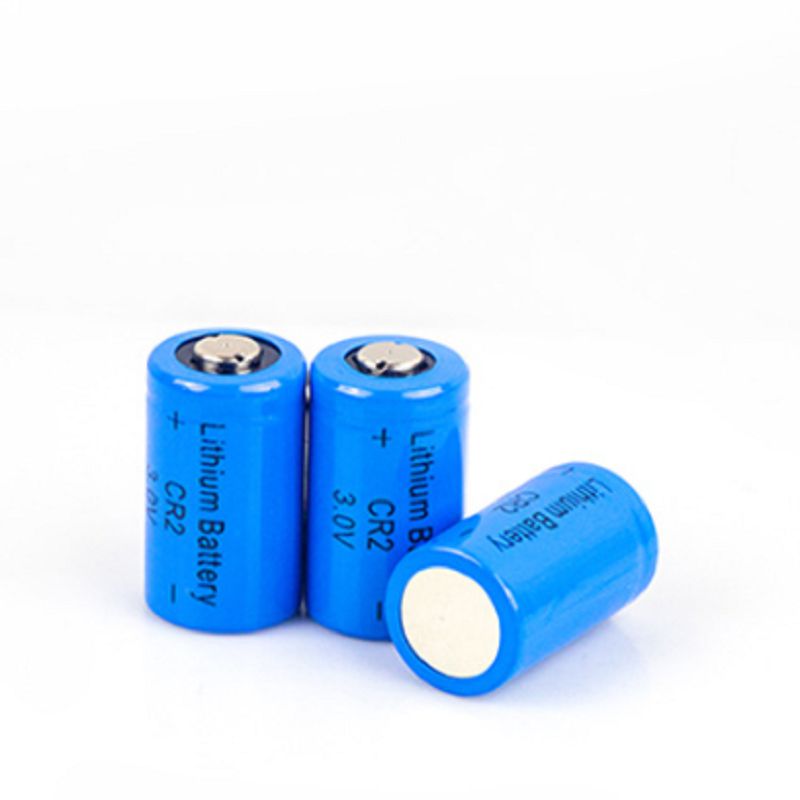

CR2 Cylindrical Li-MnO2 Battery with High Power
Product Type
Lithium Manganese Dioxide Battery (Li-MnO2 battery)
Li-MnO2 Battery Key Features
High and stable working voltage
Low self-discharge rate (annual self-discharge rate less than 2% at 25℃)
High energy density (400wh/kg)
Nickel-plated steel housing
Airtight guarantee
Comply with IEC60086-4 safety standard
No transport restrictions
Basic Parameters
Item
Subject
Features
Remark
Specification
CR2
Norminal voltage
3.0V
Nominal discharge current
5mA
Norminal capacity
850mAh
1mA, 25±3℃，cut-off at 2.0V
Max. continuous discharge current
850mA
Max. available pulse current
1500mA
Operating temperature
-40℃~+70℃
Dimension
φ15.5×27.5
See attached figure
Standard weight
About 13g
Annual self-discharge rate
≤2%
25±3℃，RH 65±10%
