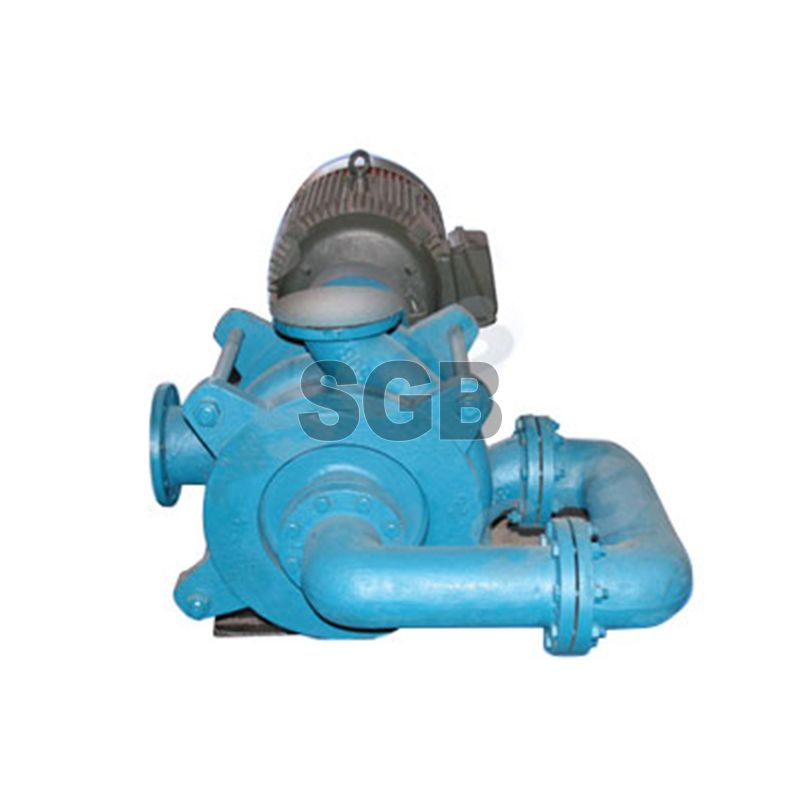

DG Series Filter Press Feed Pump
DG Series Filter Press Feed Pump
Product Description
– Single stage, single suction, horizontal centrifugal pump
– Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome cast iron alloy.
– Horizontal-central-split container bracket easy for maintaining
– Packing or mechanical seal
– Protective shell surrounding the casing ideal for heavy duty
– Hydraulic optimization design for pressure filter, high-efficient, energy-saving and stable operation
Technical Specifications
Performance and Main Technical Datas of DG Single-Case Pumps(1)
Type
Allowable max.power of ass.motor(kW)
Clear water performance
Particle max.
Size handled occasionally
(mm)
Pump weight
(kg)
Q
Capacity
(m3/h)
H
Head
(m)
n
Speed
(r/min)
Max.eff.
(%)
(NPSH)r
(m)
150DG-A50
55
62-279
9.3-44.6
490-980
65.7
2.1
30
1470
100DG-B45C
90
53-233
13.1-66.6
700-1480
53.6
3.6
26
1290
100DG-B38CS
90
40-171
18.5-94.1
700-1480
58.7
3.4
18
1420
Application
–Feeding pump for pressure filter in Coal washery, metallurgy dressing works, power plant ash-handling system
-Other slurry pumping condition
