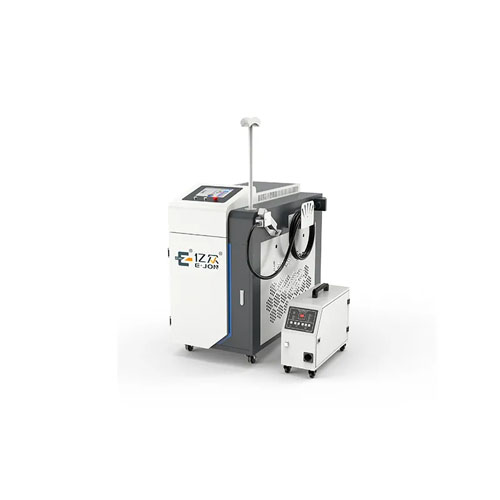

EJON Handheld Fiber Laser Welding Machine
Handheld fiber optic welding machine, equipped with the latest generation of laser generators and our company’sdeveloped swinging welding head. This machinefills the gap in handheld welding. It is suitable forwelding aluminumalloy plates, stainless steel plates, iron plates, galvanized sheets, and other metal materials, perfectly replacingtraditional processes such as TIG welding and arc welding. The welding speed is 2 to 3 times faster than traditionalwelding methods, helping you save at least two welders annually. No deformation, no weld marks, and the weldingis strong. Laser welding consumes less material and has a longer lifespan. The newly upgraded swinging weldinghead compensates for the small laser spot size, expanding the tolerance range of the workpiece and the weld width, achieving better weld formation results, making it safer and more environmentally friendly.
Parameter Table
Laser power
1500watt
2000watt
3000watt
Laser wavelength
1070nm ± 5%
Working Voltage
Single-phase 220V± 5%, 50Hz
Three-phase 380V ± 5%, 50Hz
Laser source
MAX
Power consumables
4kw
6kw
9kw
Fiber wire length
Standard 10m
Welding system
3 in 1, single wire feeding
3 in 1, double wires feeding
Cleaning system
3 in 1, width: 15cm/30cm
3 in 1, Width: 15cm/30cm
Cutting system
3 in 1
3 in 1
An Automated Laser Welding Machine is an advanced welding system that uses focused laser beams to create deep, narrow weld seams with minimal heat input. Integrated automation allows the machine to perform continuous, repeatable welding operations with minimal human intervention.
