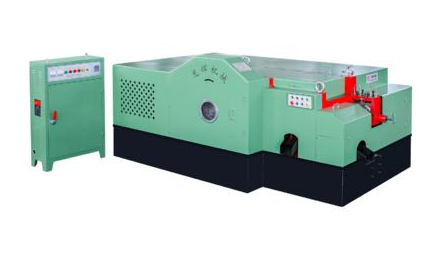

Ensuring Stability and Precision in High-Speed Cold Heading

The Core Challenge of High-Velocity Forming

Operating at several hundred strokes per minute introduces immense dynamic forces, vibration, and thermal stress. The primary engineering goal for a high-speed cold heading machine is not just to achieve high speed, but to maintain unwavering stability and dimensional precision at that pace. This dictates a design philosophy centered on rigidity, balance, and sophisticated control systems to counteract the inherent challenges of rapid cyclic loading.

Robust Frame and Gib Construction

The foundation is a massively rigid machine frame, typically a one-piece, heavily ribbed casting or welded structure made from high-grade cast iron or steel. This frame must absorb and dampen vibration without flexing. Precision-ground guide gibs (ways) for the sliding components are critical. In a high-speed cold heading machine, these gibs are often extra-long and utilize low-friction materials or coatings to maintain perfect alignment of the punch and die assemblies under high inertial loads, preventing deflection that causes tool wear and part inconsistency.

Balanced Drive and Eccentric Shaft System

The heart of the motion is a short, rigid, and dynamically balanced eccentric shaft. It is supported by oversized, high-precision anti-friction bearings designed for heavy radial loads. The connecting rods and slides are designed for minimal mass while maintaining strength to reduce reciprocating inertia. Advanced high-speed cold heading machine designs may incorporate counterbalance systems to offset the vertical forces of the main slide, further reducing vibration transmitted to the frame and foundation.

Advanced Tooling and Punch Holder Design

Precision at high speed demands exceptional tooling integrity. The tool holders (punches and dies) are designed with ultra-secure clamping mechanisms to eliminate any micro-movement. Quick-change tooling systems are engineered for repeatable positioning accuracy. The tooling itself for a high-speed cold heading machine is made from specialized, tough grades of powder metallurgy high-speed steel or carbide to withstand high cyclic stress and the heat generated from rapid plastic deformation.

Integrated Cooling and Lubrication Systems

Friction and deformation heat can quickly degrade tool life and part quality at high speeds. A high-speed cold heading machine features a high-pressure, recirculating lubrication system that floods the forming zone and critical moving parts. This serves to cool the tools and wire, reduce friction, and flush away minute metal particles. Sophisticated temperature management is a non-negotiable feature for maintaining consistency in a high-speed cold heading machine.

Electronic Monitoring and Control Systems

Modern precision is enabled by electronics. A state-of-the-art high-speed cold heading machine employs a Programmable Logic Controller (PLC) and servo systems to manage speed ramps, monitor pressures, and control auxiliary feeds. Critical parameters like main motor load, feed length, and ejection are constantly monitored. Any deviation outside set tolerances triggers an automatic stop, preventing the production of defective parts and protecting the machine and tools from damage. This electronic governance is essential for sustaining precision in a high-volume production environment.
