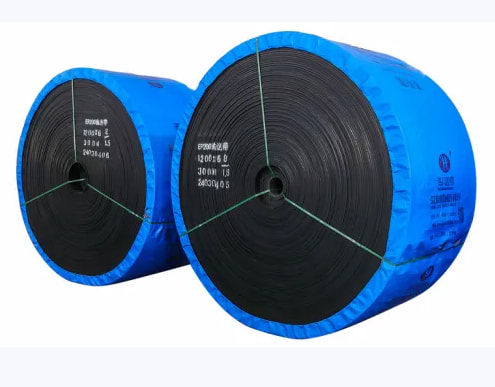

ep200 conveyor Belt
High strength conveyor belt is suitable for the working conditions which are long distance, high speed and heavy load transportation. To convey the powdery, granular materials and blocked materials with no corrosivity, such as coals, sands and stones. It also suitable for heavy load and high speed transportation of materials, which are widely used in coalmines, mines, chemical industry,metallurgy. construction, ports, and some other area. The rubber covers of high strength conveyor belt adopts high strength sizing, and the skeleton is adhered by multi plies of quality nylons or poly curtains.
specification
1.Cover Grades
Grades of cover
Tensile strength/Mpa
Elongation at break%
Abrasion/mm³
L
15
350
200
D
18
400
100
H
24
450
120
H1
25
450
90
H2
28
450
90
H3
30
450
90
H4
35
450
90
2.Full thickness tensile performanceThe vertical full thickness strength of belt is not smaller than the specified type in the form below. The minimum full thickness tensile strength (N/mm) = specified belt type
specified belt type
160
200
250
315
400
500
630
800
1000
1250
1600
2000
2500
3150
3. The full thickness vertical reference strength elongation of belt is no more than 4%
4. The adherence strength between plies
item
between the fabric plies
between cover and belt cord
cover thickness between0.8-1.5mm
cover thickness>1.5mm
Average of sample N/mm
8.0
5.0
6.0
Minium of sample N/mm
7.0
4.5
5.5
Special conveyor belts are designed to meet unique and challenging requirements that standard conveyor belts cannot fulfill. These belts are engineered for specific applications, environments, or material handling needs. Special conveyor belts incorporate specialized materials, designs, and features to handle challenging conditions such as extreme temperatures, high loads, chemical exposure, or intricate conveyor configurations.
