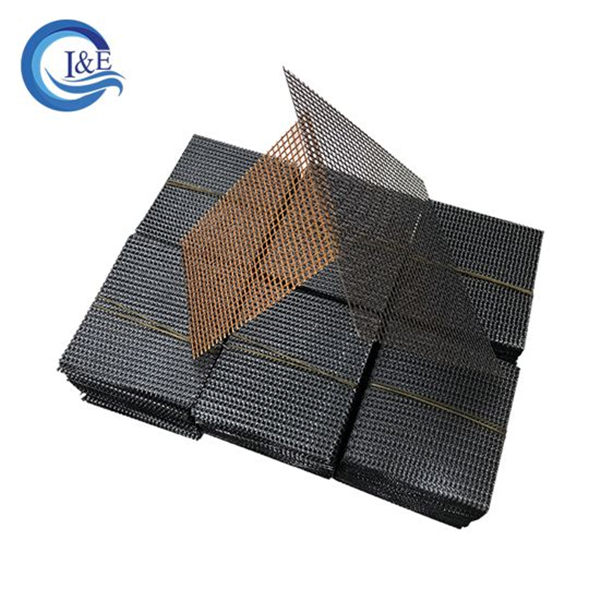

Fiberglass Mesh Filter
In casting production, steel castings, iron castings, aluminum castings and other alloy castings are prone to quality problems such as slag holes, sand holes and gas holes due to various reasons. Therefore, the removal of non-metallic inclusion in metal melt is of great technical and economic value to improve the yield of castings and the quality of castings.
Fiberglass Mesh Filter is an ideal filter material for various metal melts. It can also be used for the filtration of chemical corrosive liquids and high temperature gases.
Type
Fiberglass filtration mesh for aluminum
Work Temperature
700-800℃
Softening Temperature
900℃
Continuous Working Hours
＜20Min.（700-800℃）
Gas Emit
≤30cm 3/g
Thickness
0.5mm
Weight
150-350 g/m2
Hole Size
0.8*0.8/1.0*1.0/1.2*1.2/1.5*1.5/2.0*2.0/2.5*2.5mm
Weave Pattern
Leno
Currently we have two plants producing different filtering products, the original one is mainly produced fiberglass material filters, including Hi-temp carbonized fiberglass filtration mesh, cap filter, combo&shunt filter bag, high silica fiberglass filter mesh and other heteromorphic filter mesh, which is located in Luoyang city. The other plant is mainly produced SIC, Alumina, Zirconia ceramic foam filters and honeycomb extruded ceramic filter, which is located in Pingxiang city.
