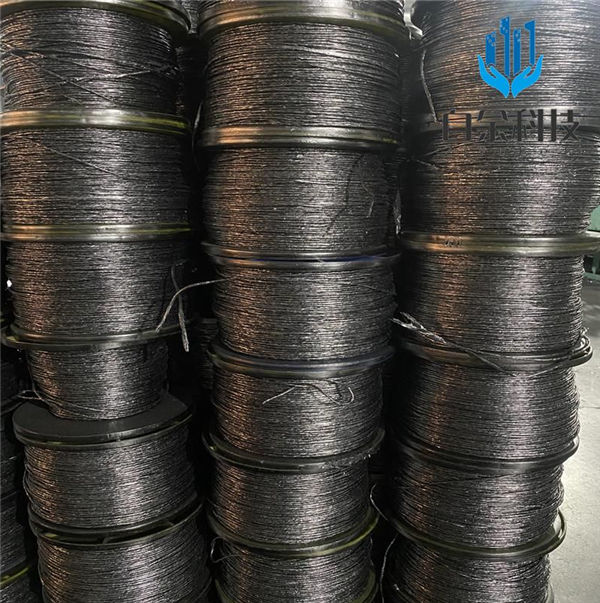

Flexible Graphite Wire
Flexible Graphite WireFlexible graphite wire is used to expand graphite through high pressure instantaneously into the high temperature 800℃-1100℃ expansion furnace, due to the absorption of the compound in the layer lattice decomposition, the volume of arbitrary expansion 160 times to 280 times than before, into a very low density of worm-like, adding adhesive and different natural fibers, such as: Cotton yarn、glass fiber and carbonized fibre as well as others reinforcing materials form into strips. After the compounding and cutting processes of the composite machine in addition to other process，it is sent to spinning machine to textile.
Product characteristics
In order to adapt to different working conditions, metal materials such as nickel alloy wire, stainless steel wire and copper wire can be inserted, and various types of reinforced flexible graphite wires can be made through specific processes, which are used to weave flexible graphite coils with different effects in the sealing industry and various specifications of graphite grounding bodies in the power industry.
Flexible graphite wire parameters
Specifications and models
2g/m,3g/m,5g/m,2-12g/m Can be customized
Wire diameter
2mm,3mm,5mm
Carbon content
≥99%
Resistance ionization
≤3.75×10Ω•m
Sulphur content
≤1000ppm，no sulphur: s50ppmlow sulphur:≤700ppm
Chlorinity
≤50ppm
Density
0.9-1.3g/cm³
Strength of extension
≥10MPa
Firing loss rate
≤12%（450°C，burning for 3 hours）
Thread twist
s230°/m
Our products have advanced technology, complete varieties and excellent quality, which are widely used in nuclear power plants, wind power stations, hydropower stations, mobile communication stations, radar stations, electric power, petrochemical, national defense military industry, railway and other systems. We have cooperated with the State Grid and China Water Resources and hydropower for many times, and won the praise and trust of our customers. Products are exported to Germany, the United States, Russia, Pakistan, Ethiopia and other countries. The company can be customized according to customer needs. Contact us today to begin our first time cooperation!
