Freecolor Direct to Substrate Printer
FC-UV4060
Freecolor Direct to Substrate Printer

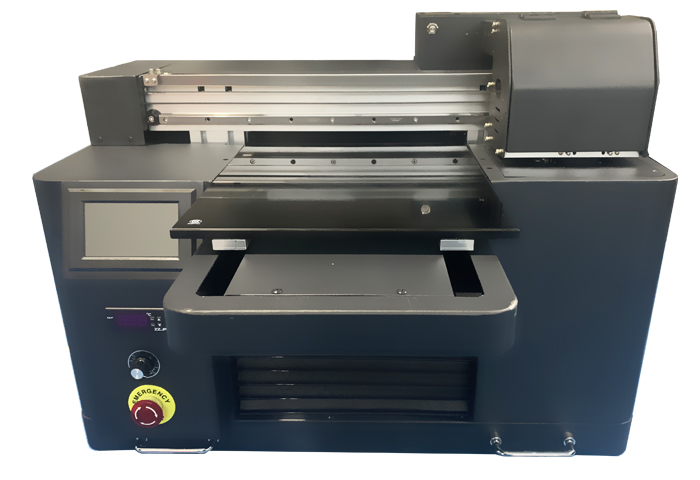

Freecolor’s FC-UV4060 is our hot sale multifunctional printer ! This new technology combine UV curable inks and a built-in UV-LED lamp to produce vibrant full color and textured imprints that cure rock-solid on a huge variety of substrates, including dark and clear materials!
· Shipping crate has casters, making it easy to roll into position. After unloading the printer, simply apply the brakes and you have a perfect-sized platform to hold your printer.
· Handles on all 4 sides make the printer easily movable for 2 people.
· Bulk ink system. Fits back side of machine for storage.
· The screen panel control puts all functions at your finger-tips including: manual flatbed height adjust, auto-height adjust; move bed backward and forward; perform head-cleanings.
· Easy access to perform maintenance and/or repair parts without disassembling printer to get inside.
· Flatbed is open at the back and front, allowing oversized products to be loaded, and products can be accessed during print runs for loading and unloading.
Printer Model
FC-UV4060
Print head
1 pieces Epson TX800 head or DX7 head or DX5 head
Ink
CMYK + W
Print Speed
1-3 square meter per hour
Print Size
30x50cm max.
Print Height
20cm max.
Rotary Device
Optional
Print Resolution
720×1080 / 720×1440 / 720×2160 dpi
RIP Software
Maintop 6.0 or Photoprint 12
Cleaning System
Auto Cleaning System
White Ciculation System
Yes
Ink Supply System
Open Bulk Tank With Ink Lack Alarm Device
Printer Dimension
800x850x570mm
Computer System Requirement
Windows 7 / 10 64bit
Connection Port
USB 2.0 /3.0
Cooling System
Water Circulation Cooling
Motor Brand
Leadshine Servo
Freecolor’s FC-UV4060 has a large imprint area of 12”W x 22”L x 8”H. The built-in automatic height sensor will detect products and position the flatbed so they are at an optimum distance (2mm) from the print head to maintain the highest quality imprints possible.
Our repositionable tray fixtures make it easy to print on products of varying shapes and materials. Simply lift off one tray and slide in a new one to change from one product to another. Print speed for a full print run ranges from 2 mins (text imprint) to 10 mins (full color coverage). The built-in UV-LED lamp cures the inks instantly as they are printed for rock-solid, durable imprints on metal, glass, wood, stone, plastic, fabric, vinyl and MUCH more!
