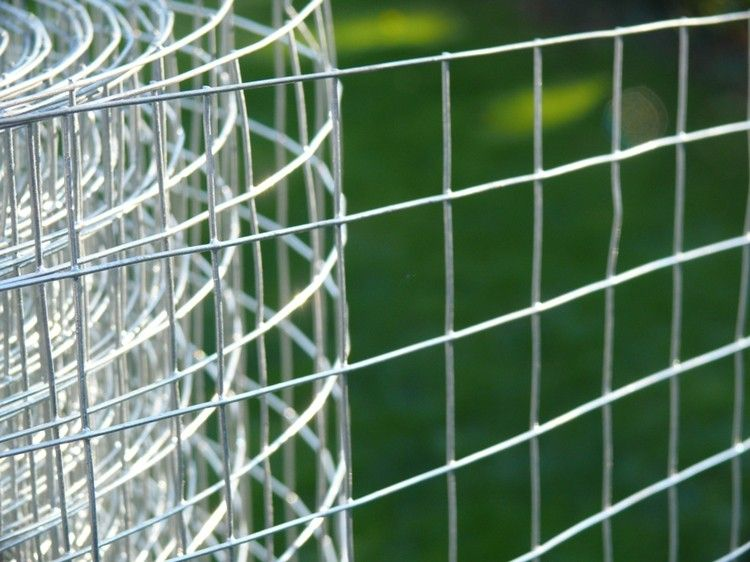

Galvanised Welded Mesh
Material:
Galvanised welded mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
PRODUCTS DESCRIPTION
Product Details:The galvanised welded mesh is made of low-carbon steel wire processed by fully automatic CNC welding equipment. Weld with ordinary steel wire and galvanize after welding. The steel wire strands are resistance-welded at each intersection to form many square and rectangular openings. The surface of the finished product is flat and uniform, the structure is firm, the integrity is good, and the corrosion resistance is excellent.Surface treatment:
Hot-dip galvanized, electro-galvanized.
Features:The solder joints are strong and the luster is bright. Even if it is cut into parts or exists, the mesh will not loosen.
Apply force to the part. Compared with general iron wire, the product is better in anti-corrosion and anti-rust.
Application:
Safety fences, cages and animal enclosures
Farms, gardens and other agricultural fences
Windows and safety guards
Pond cover or protection
Archaeological use
Construction works
Filler board
High security application
Landscaping and gabion
Wall and stone preservation
Greenhouse use
Particle separation
General industrial use
Packaging Details:
Plastic film, pallet or according to customer’s requirement.
Product specifications：
Specification List of galvanised welded mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
1/4″ x 1/4″
6.4mm x 6.4mm
22,23,24
3/8″ x 3/8″
10.6mm x 10.6mm
19,20,21,22
1/2″ x 1/2″
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8″ x 5/8″
16mm x 16mm
18,19,20,21,
3/4″ x 3/4″
19.1mm x 19.1mm
16,17,18,19,20,21
1″ x 1/2″
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2″ x 1-1/2″
38mm x 38mm
14,15,16,17,18,19
1″ x 2″
25.4mm x 50.8mm
14,15,16
2″ x 2″
50.8mm x 50.8mm
12,13,14,15
2″ x 4″
50.8mm x 101.6mm
12,13,14,15
4″ x 4″
101.6mm x 101.6mm
12,13,14,15
4″ x 6″
101.6mm x 152.4mm
12,13,14,15
6″ x 6″
152.4mm x 152.4mm
12,13,14,15
6″ x 8″
152.4mm x 203.2mm
12,13,14
Technical Note:
1,Standard roll length: 30m; width: 0.5m to 2.4m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
