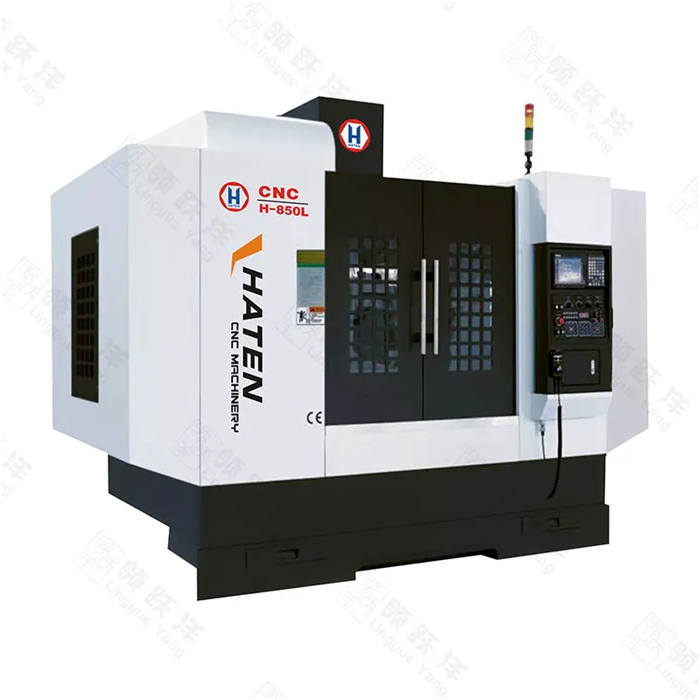

H-850L COMPUTER NUMERICAL CONTROL (CNC)
● High rigidity precision linear guides are selected, featuring high speed, low noise and low wear, which are suitable for the rapid processing of precision mold parts.
● The spindle adopts C3 high-precision lead screw angular contact ball bearings and a high-strength arrangement structure.
● It is driven by a high-torque, low-noise and highly stable AC control servo motor.
● The powerful cutting ability combines with outstanding accuracy and performance, making inlaying and hole drilling operations simple and easy.
● Computer Numerical Control is widely used in the processing industries of machine tools, auto parts, lighting fixtures, hardware and other parts.
Specifications
Item
unit
H-850L
Worktable area
mm
1000*500
Worktable maximum loading
kg
450
T-Slot(slot*width*distance)
mm
5-18*90
Spindle nose taper
BT
BT40
X/Y/Z axis travel
mm
800/500/600
Distance between spindle end face and worktable end face
mm
110-710
X, Y, Z axis gauge specifications
35/45/Sliding rails
Spindle Speed (Belt type/Direct Connection)
rpm
8000/12000
Tool magazine capacity
T
24
X/Y/Zaxis fast displacement
m/min
24*24*18
Cutting feed speed
m/min
1-8000
Repeated positioning accuracy
mm
±0.003/300
Machine weight
Kg
5000
As an innovative manufacturer of composite machining centers, we focus on providing multi-functional CNC solutions that can complete turning, milling, drilling and tapping of complex workpieces in one clamping, greatly improving production efficiency and machining accuracy.
