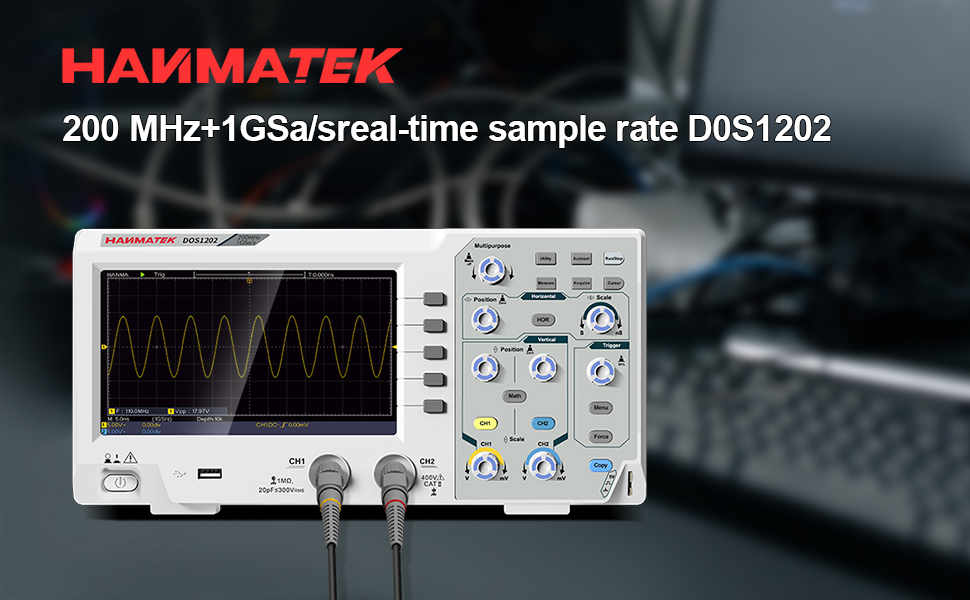

HANMATEK® DOS1202 200 MHz Benchtop Oscilloscope for Precision Testing
The HANMATEK® DOS1202 Benchtop Oscilloscope is a powerful tool designed for engineers and hobbyists alike. With a 200 MHz bandwidth, this oscilloscope provides precise measurements and detailed waveforms. It helps you analyze electrical signals accurately, making it essential for both educational and professional projects.Technical Specifications (DOS1102S Digital Oscilloscope)Performance CharacteristicsInstruction (DOS1102S)Bandwidth110 MHzRise Time (at input, typical)≤ 3.18 nsHorizontal Scale2 ns/div – 1000 s/div, step by 1-2-5Sample rate (real time)500 MSa/sDisplay7″ Colored LCD, 65536 colors, 800 × 480 pixelsChannel2 channelsMax Record length10KSampling rate / relay time accuracy±100 ppmInput couplingDC, AC, GroundInput impedance1 MΩ ±2%, in parallel with 20 pF ±5 pFMax. input voltage400V (DC+AC, PK-PK)DC Gain Accuracy±3%Vertical Sensitivity20 mV/div – 5 V/divTrigger typeEdge, VideoTrigger modeAuto, Normal, SingleLine/field frequency (Video)Support NTSC, PAL, SECAMAutomatic measurementPeriod, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, +Duty Cycle, -Duty Cycle, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, Cycle AreaWaveform Math+, −, ×, ÷, FFTWaveform storage16 waveformsCommunication interfaceUSB 2.0, USB flash disk storagePower supplyDC 5V/2AAG WaveformStandard waveformSine, Square, Ramp, Pulse, ArbArbitrary waveformSinc, exponential rise, exponential decline, GaussianFrequency CharacteristicsSine0.1 Hz – 10 MHzSquare0.1 Hz – 2 MHzRamp0.1 Hz – 1 MHzPulse0.1 Hz – 1 MHzArbitrary0.1 Hz – 1 MHzOthers CharacteristicsBandwidth10 MHzReal-time sample125 MSa/sAmplitude (50Ω)0.25 Vpp – 2.5 VppFrequency resolution0.0001Channel1Waveform length8kVertical resolution14 bitsOutput impedance50ΩMechanical SpecificationsDimension301 mm × 152 mm × 70 mm (L×H×W)
This 200 MHz benchtop oscilloscope features a large, high-resolution display, allowing for clear visualization of your data. Whether you’re troubleshooting circuits or conducting experiments, you will appreciate the excellent readability and user-friendly interface. Its intuitive controls enable quick adjustments, essential for live measurements.
The DOS1202 also includes multiple channel inputs, allowing you to monitor several signals at once. This versatility is perfect for complex projects. The built-in memory function lets you save and recall waveforms easily, enhancing your workflow.
Portability is another advantage of the HANMATEK DOS1202. Its compact design makes it easy to move from one workstation to another. You don’t have to sacrifice performance for convenience. This 200 MHz benchtop oscilloscope is designed to fit seamlessly into your workspace.
Durability and reliability are hallmarks of HANMATEK products. The DOS1202 is built to withstand the demands of rigorous daily use. It is designed with high-quality components, ensuring longevity and accuracy in every test.
In conclusion, the HANMATEK® DOS1202 Benchtop Oscilloscope is an essential tool for anyone in need of precision engineering solutions. Its 200 MHz bandwidth, user-friendly features, and robust build make it a top choice in the market.
