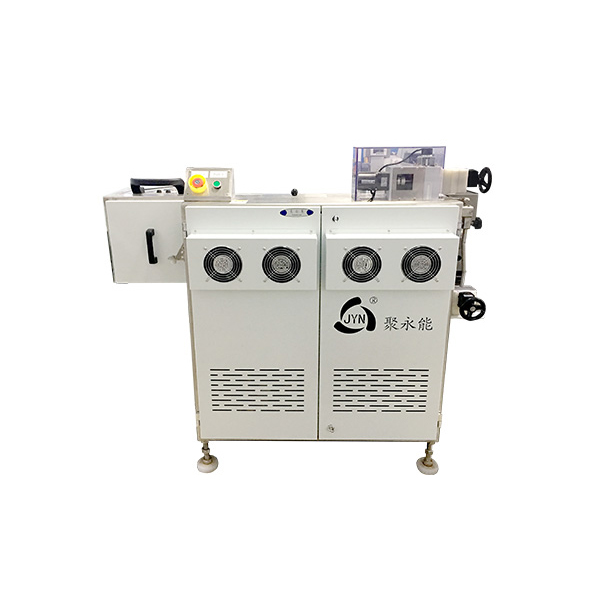

HM Pumex Grinding Machine

Name

TSP

HM3/6-75 S/Z

HM3/6-85 S/Z

Appearance Size

L2247mm*W1600mm*H1400士25mm

L2887mm*W1600mm*H1400士25m

L2247mm*W1700mm*H1400士25mm

L2887mm*W1700mm*H1400土25mm

Max

HM3/6-75S/Z:660mm*660mm

HM3/6-85 S/Z:762 mm*762mm

Min

250mm* 250mm

Substrate Thickness

0.2~ 3.2mm /0.5~ 8.0mm

Production Speed

1.5~3.0M/Min adjustable speed range 1.0~5.0M/Min

Total weight of the machine

About 1.2T(2-axis)/About 1.6T(4-axis)

Applicable Process

Dry Film Pre-treatment, Solder Mask Pre-treatment

Characteristics of HM Pumex

1. Special grinding brush structure design, which can replace any grinding brush within 5 minutes without the need for other professional adjustments; The machine comes with a special brush removal tool and a fixed position for the special brush removal;

2. The special program design is perfectly combined with the Italian SEW motor, making the grinding program have three functions: thin, medium, and thick. The thickness range can reach 0.2MM~3.2MM, and a model capable of producing 10MM thick has been developed according to customer needs；

3 clutches and high-speed encoders work together to accurately calculate the plate length and position during HM Pumex Grinding Machine operation. At the same time, German SEW brake motors are equipped to ensure timely braking in various control programs to ensure forward and reverse response time;

4. Reasonably design the grinding brush water supply tank and grinding brush to ensure the supply of ash and play a bridging role under the grinding brush, ensuring the ability of 0.2MM plate thickness to pass through the plate and the grinding effect;

5. The combination of inner and outer sealing layers of the casing, as well as the addition of sealing baffles and sealing rings, forms a good 5 sealing structure;

6. The conveyor bag rubber pressure chain adopts a semicircular quick disassembly type for tight installation, combined with a complete 6-axis shaft core, ensuring smooth transportation.
