Instrument PCBA Board

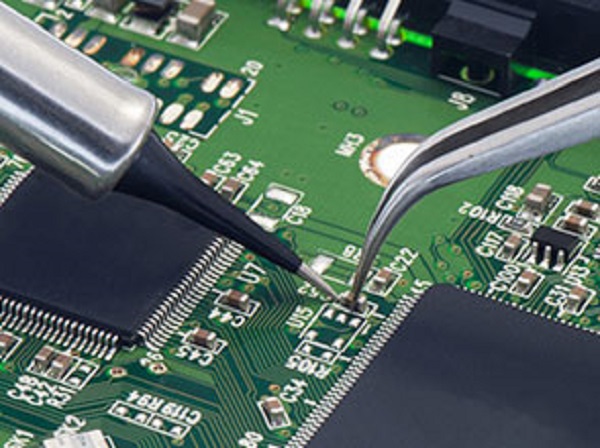

When manufacturing plenty of PCB boards, it is impossible to solder parts by hand. You will need PCB instruments to complete this step, to make a bare board, and assemble all parts onto the printed circuit board. There are many issues to consider at each stage of the assembly process, to provide a perfect functional printed circuit board. As a professional PCB board manufacturer, HX Technology provides high-quality PCB instruments for customers.



Introduction to PCB Instrument

The basic instruments required for PCB assembly includes:



Solder Paste Printing machine



Solder Paste Inspection (SPI) machine



Glue Dispensing machine



Pick-and-Place machine



Reflow Soldering machine



Wave Soldering machine (for through-hole components)



Automatic Optical Inspection (AOI) machine



In-Circuit Test (ICT) Fixture



Functional Validation Test (FVT) Fixture
