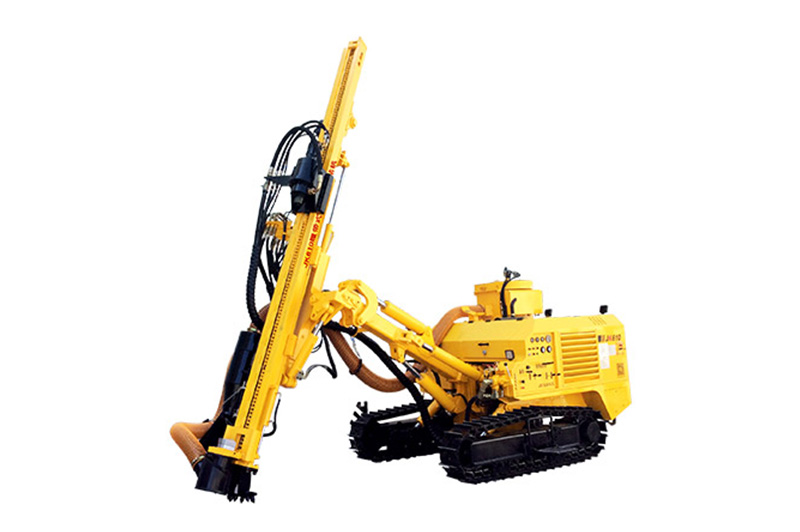

JK610 Crawler Mounted Blasting Borehole Drilling Rig
JK610 internal combustion (electric) crawler mounted hydraulic DTH drill rig, is the latest updated product of “Sharp Sword” series, featuring its better performance, lower operation cost and humanized design.
It adopts a 70kW Yuchai diesel engine and hydraulic oil pump station assembly to generate power, allowing rigs to rotation, propelling, lifting, walking and angle positioning.
During operation, only the percussive hammer consumes the compressed air. In contrast with conventional pneumatic drilling rigs, JK610 consumes about 40% to 50% less energy (oil or electricity), and the air displacement of matched air compressor decreases 30% to 50%.
JK610 is equipped with dust collecting system, and wet type dust collector is optional as long as water is accessible on site.
JK610 is mainly applicable to blasting borehole drilling process of hydro project, open pit mining, quarrying, road construction and defense project.
ModelJK610Borehole diameter90-165mmBorehole depth50mApplicable rock hardnessf=6-20Working air pressure1.2-2.4MPaAir consumption11-21m³/minFeeding stroke4148mmRod-changing length3mMax. horizontal drilling height3370mmRotation rate0-60rpmRotation torque3000NmTravle speed2Km/h, 3Km/hGrade ability30°PowerYuchai 70KWDust collector (optional)Hydraulic dry dust collectorWet dust collectorDimension (LxWxH)7000mm×2000mm×2500mmWeight6900kgWired remote controlOptional
