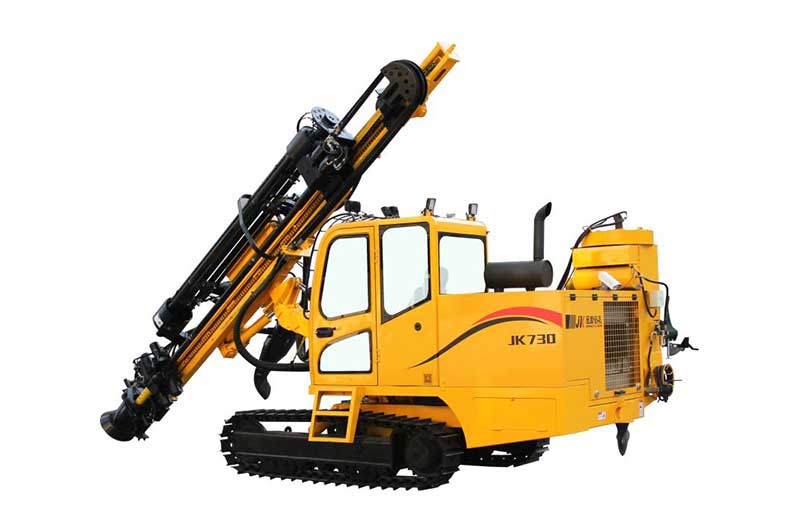

JK730 Automatic Crawler Mounted DTH Drilling Rig

JK730 Automatic Crawler Mounted DTH Drilling Rig features its lower operation cost and humanized design.



It adopts a powerful diese engine and hydraulic oil pump station assembly to generate power, allowing rigs to rotation, feeding, lifting, walking and angle positioning.



During operation, only the percussive hammer consumes the compressed air. In contrast with conventional pneumatic drill rigs, JK730 consumes about 40% to 50% less energy (fuel or electricity), and the air displacement of matched air compressor decreases 30% to 50%.

DTH Drilling Rig introduction:



JK730 DTH drilling machine is the air-compressor separated hydraulic DTH drilling rig. It is equipped with automatic pipe changer for pipestorage, changing and connecting automatically, as well as hole locating devise and luxurious cabin. Safe and comfortable operation environment substantially reduces labor intensity and curtails labor numbers. In contrast to the all-in-one rigs,JK730 is featured by its convenient operation and maintenance as well as low downtime rate.

https://www.jkdrilling.com/crawler-mounted-hydraulic-dth-drilling-rig/

Automatic Crawler DTH Drilling Rig Parameters:



Model

JK730

Borehole diameter

90-165mm

Rod carousel

Rod capacity

5+1/6+1

Rod length

3m

Rod diameter

φ76mm

Auto rod-changing depth

18m/21m

Applicable rock hardness

f=6-20

Working air pressure

1.2-2.4MPa

Air consumption

11-21m³/min

Feeding stroke

3850mm

Rod-changing length

3m

Max. horizontal drilling height

2970mm

Rotation rate

0-90rpm

Rotation torque

3300Nm

Travel speed

2Km/h, 3Km/h

Grade ability

20°

Power

Yuchai 92kW (optional Cummins 97kW)

Dust collector (optional)

Hydraulic dry dust collector

Wet dust collector

Dimension (LxWxH)

7000mm×2400mm×3350mm

Weight

9000kg

As a professional DTH Drilling Rig supplier, we have professional products and perfect service.
