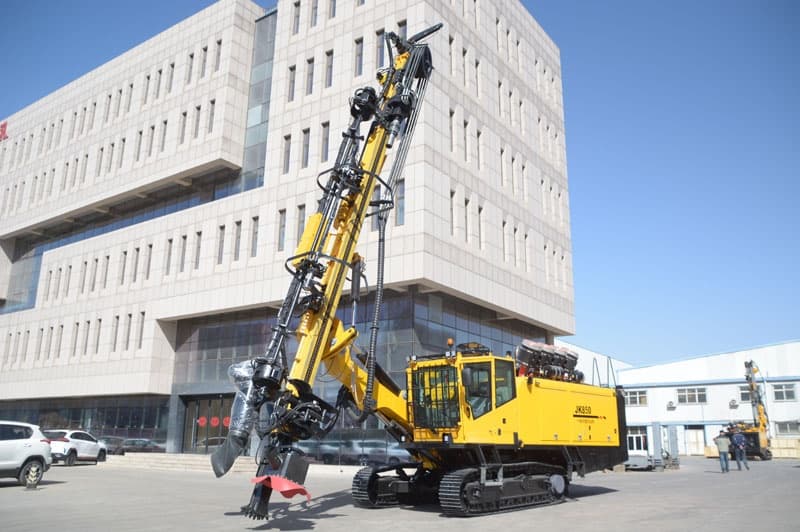

JK850 Integrated DTH Drilling Rig
JK850 is an integrated hydraulic DTH drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation. The FOPS-approved cabin and automatic pipe handling system come standard.
Heavy-duty undercarriage with wide tracks ensures both extreme maneuverability and improved safety. The hydraulic dust collecting system meets the latest environmental protection regulations and it’s a reliable solution to realize the modern green mining
Technical parameters
General
Weight
kg
25000
Length
mm
12300
Width
mm
3200
Height
mm
4200
Undercarriage
Track length
mm
3646
Ground contact length
mm
2912
Track cenler distance
mm
2349(total width 2749)
Track width
mm
400
Ground clearance
mm
≥400
Track oscillation
°
±10
Walking speed
km/h
1.6(slow speed)3(fast speed)
Max. tractive force
KN
170
Grade ability
°
20
We offer a full range of drilling rigs serving the geotechnical, environmental, geothermal, core, oil and gas, water well and blast hole drilling industries. JK Drilling extensive inventory allows customers to choose the rig that best suits their needs and budget. If it’s not already in stock, our sales team will utilise their extensive network in the industry and get it here or there quickly.
