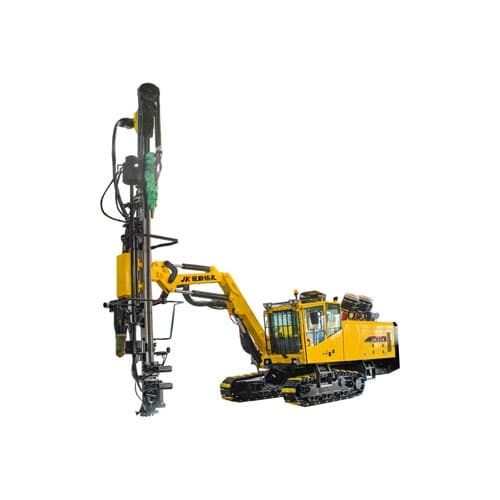

JK930 Integrated fully hydraulic open-pit Top Hammer Drill Rig
The JK930 all-in-one fully hydraulic open-pit Top Hammer Drill Rig is a flexible and versatile top hammer drill rig designed and developed for high-performance in demanding construction applications. It is also a highly efficient alternative for small to medium-sized quarries. Due to its low center of gravity and long boom reach, it maintains high utilization even in harsh terrain conditions. Equipped with a French Montabert rock drill and an efficient screw type air compressor from Atlas Copco, it is reliable and durable, with flexible operation, excellent drilling hole quality, and long service life, making it the ideal choice for various mining and engineering projects.
Main Advantages
Rock Drill
Equipped with the French Montabert HC150 rock drill with a 21KW impact power, the drilling efficiency is high, offering flexibility and efficiency. It features an adjustable impact frequency function, allowing for the frequency of the rock drill to be flexibly changed under different rock conditions to achieve high working efficiency. This reduces costs, making it highly effective in working across different rock formations.
Cabin
The ROPS and FOPS certified Cabin is comfortable and safe. The drill rod handling system is highly reliable, ensuring that drilling operations can proceed quickly and smoothly. The rig is designed for high efficiency and ease of maintenance, capable of performing all drilling tasks excellently.
Feed
The special pressed aluminum alloy feed beam is protected by a stainless steel wear-resistant sleeve, providing high strength and excellent straightness. The overall lightweight design of the feed results in low load and high reliability.
Folding Boom
The folding reinforced drill boom allows for multi-angle operations including horizontal, vertical, and inclined drilling, offering a large drilling coverage area suitable for various harsh terrains.
Air Compressor
Equipped with Swedish Atlas.Copco air compressor , it offers stable and reliable performance with low energy consumption.
Engine
The Cummins QSC8.3-C260-30 engine, with a powerful output of 194KW, offers strong and reliable performance with easy maintenance.
Automatic Rod Changing System
