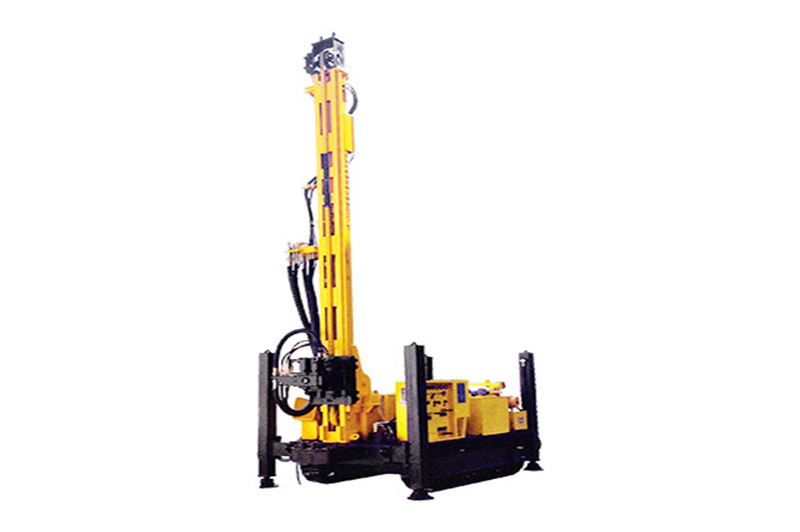

JKS300B Crawler Mounted Versatile Well Drilling Rig
JKS300B Crawler Mounted Versatile Well Drilling Equipment Features
JKS300B Well Drilling Equipment is a new type of efficient and versatile hydraulic rig. It is mainly applicable to the drilling process of water wells, monitor wells, and geothermal wells.
When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with a penetration speed being dozens of times quicker than conventional rotation rigs.
In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions.
Winch can lift stuff upwards of 6m, facilitating installing pipes.
Hydraulic supporters facilitate the rig erection on site without crane.
Smaller size makes it adaptable to various kinds of construction sites.
JKS300B Crawler Mounted Versatile Well Drilling Equipment ParametersRated Drilling Depth300mBorehole Diameter105-350mmEngine Power92kWMaximum Lifting Force15TSmall Winch Lifting Force1.5TRotation Torque8500N.mRotation Rate0-40/80rpmFeeding Stroke3600mmLifting Speed0-18m/minGrade Ability15°Hydraulic Generator (optional)24kW/380VFlow of Foam Pump (optional)20L/minDimension (L x W x H)6300mm x 2000mm x 2300mmWorking Size (W x H)3100mm x 6900mmWeight8.5T
