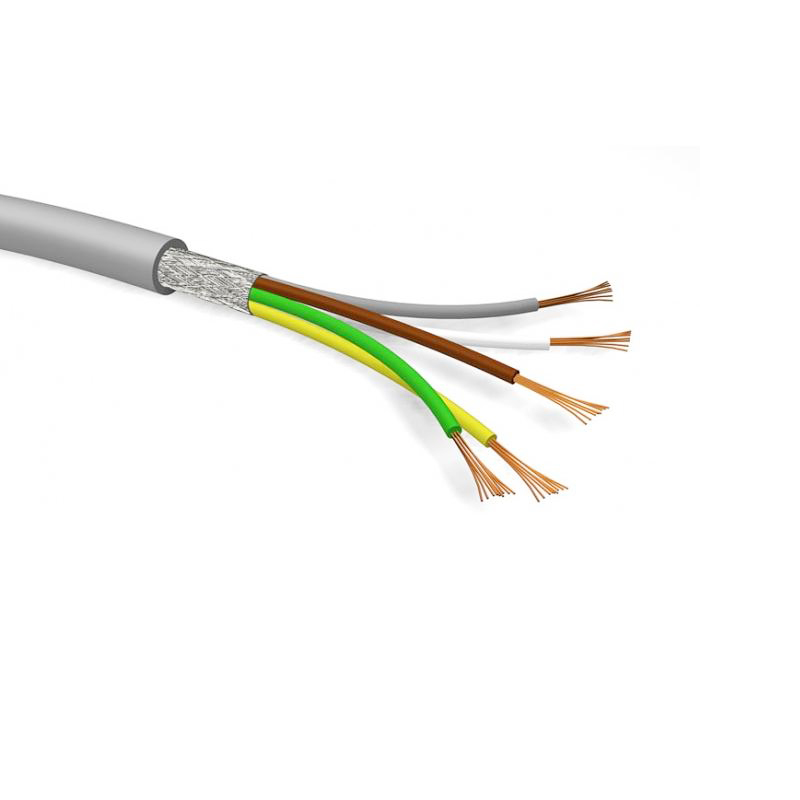

LIYCY Control Cable

liycy control cable

Our LiYCY control cables are flexible, multi-core, flame-retardant shielded signal and data transmission cables designed for indoor applications with higher requirements for electromagnetic compatibility, such as process control units and computer systems.

LiYCY control cable is available in two variants, one of which has a twisted pair (TP) cable to reduce interference (crosstalk). These cables are also available as LiYY without screen.

LiYCY control cable with a cross-section of up to 0.14 mm 2 are rated at 350 V. The larger cross-section has a voltage rating of 500 V. They operate over a temperature range of -40 o C to +80 o C when used in fixed installations and -5 o C to +50 o C when used in flexible installations.

Application

LiYCY control cable can be used for signal transmission between electronic devices, in computer systems or process control units with increased electromagnetic compatibility requirements. Also widely suitable for fixed installation or flexible application in low mechanical stress, no mechanical tension or load, non-dy-namically controlled movable dry or humid environment, but not suitable for outdoor use. Computer systems in the tool manufacturing and machine industries, electronic control equipment, machine tool industry, electronics, computer systems are often used as control and signal cables. Has good electric field shielding.

Benefits

Integral braiding minimises electrical interference

Versatile application possibilities

Flexible

Small outer diameter

Small bending radius

Characteristics

Voltage Rating (Uo/U)

250/250V

Voltage Test

1.2kV

Temperature Rating

Fixed: -30ºC to +80ºC

During Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed Installation: 6 x overall diameter

Construction

Conductor

Class 5 Fine Stranded Bare Copper

Insulation

PVC (Polyvinyl chloride)

Screen

TCWB (Tinned Copper Wire Braid) ,coverage rate≥80%

Outer Sheath

PVC (Polyvinyl chloride)

Core Identification

2 Core: White Brown

3 Core: White Brown Green

4 Core: White Brown Green Yellow

5 Core: White Brown Green Yellow Grey

6 Core: White Brown Green Yellow Grey Pink

Larger sizes: 6 Core colours + following colours in addition

7 Core: Blue

8 Core: Red

10 Core: Black Violet

12 Core: Grey/Pink Red/Blue

14 Core: White/Green Brown/Green

15 Core: White/Yellow

16 Core: Yellow/Brown

18 Core: White/Grey Grey/Brown

20 Core: White/Pink Pink/Brown

21 Core: White/Blue

24 Core: Brown/Blue White/Red Brown/Red

25 Core: White/Black

30 Core: Brown/Black Grey/Green Yellow/Grey

Pink/Green Yellow/Pink

Sheath Colour

Grey

Standards

VDE 0482-332-1-2, EN 60811-2

Fire Retardant according to: IEC 60332-1
