LMFP 33140 – 12Ah Lithium Battery
Product Description

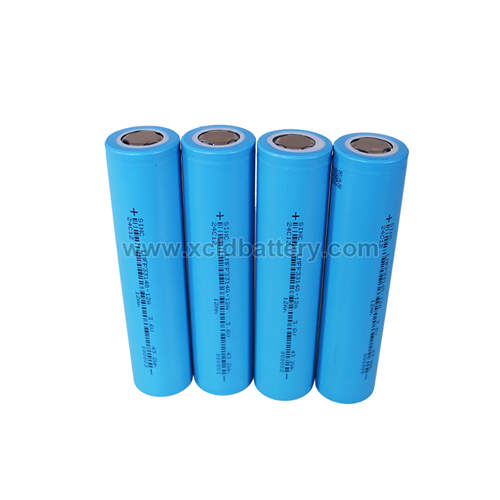

The SINC Power LMFP 33140 is a state-of-the-art 12ah Lithium Battery designed as a cylindrical cell measuring 33 mm in diameter and 140 mm in height, with a capacity of 12,000mAh and a nominal voltage of 3.2V. Constructed using a modified lithium manganese iron phosphate (LiMnFePO₄, LMFP) chemistry, this battery combines the stability of LiFePO₄ with enhanced energy density provided by manganese.
3.6V 33140 Lithium Battery Key technical specifications include:
Model: 33140 cylindrical cell
Battery Size: 33mm (diameter) x 140mm (height)
Capacity: 12,000mAh (12ah Lithium Battery)
Chemistry: Lithium Manganese Iron Phosphate (LMFP)
Nominal Voltage: 3.2V
Customization Services
SINC Power offers comprehensive, end-to-end customization for our Cylindrical Lithium Battery Cells solutions. Our services include:
Voltage/Capacity Adjustment: Customizable modular designs ranging from 12V to 72V packs (e.g., 48V100Ah for telecom backup systems).
Form Factor Optimization: Flexible cell arrangements in series or parallel configurations to accommodate unique space constraints.
Enhanced Safety Features: Optional flame-retardant casings, IP67 waterproofing, and anti-vibration padding to meet specific application requirements.
Smart Features: IoT-enabled SOC monitoring with Bluetooth and Wi-Fi connectivity for real-time battery performance tracking.
