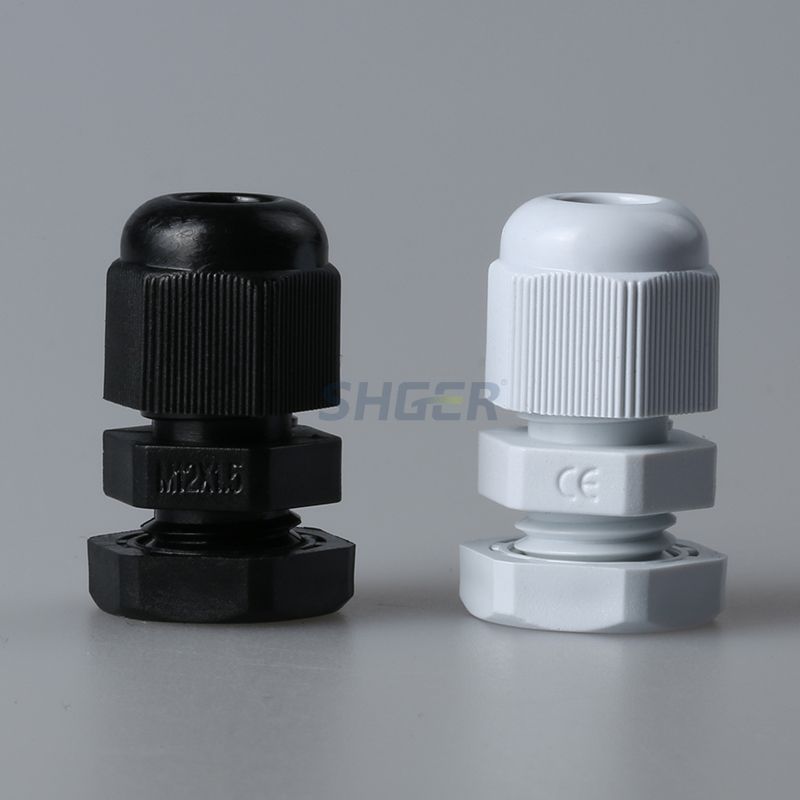

M-type cable connector
Material: Nylon PA/UL94-V0
Seal: NBR
Protection class: IP68/1P69k(the wire should be in clamping range, and use O-rings.)
Temperature range: -40°C to 100°C in static state, -20°℃ to 80°C in dynamic state.
Color: Grey, black, white, other colors customized
Thread
Cable range(mm)
AG(mm)
GL(mm)
Spanner Size(mm)
M8*1.25
2-4.5
8.0
12
13/12
M10*1.5
3-6
10.0
8
15/13
M12*1.5
3-6.5
12.0
8
18/15
M12*1.5
4-8
12.0
8
18/19
M14*1.5
4-8
14.0
9
22/19
M16*1.5
4-8
16.0
9
22/19
M16*1.5
5-10
16.0
9
22/22
M18*1.5
5-10
18.0
10
24/22
M20*1.5
6-12
20.0
10
27/27
M22*1.5
10-14
22.0
11
27/27
M24*1.5
10-14
24.0
11
27/27
M25*1.5
11-15
25.0
11
30/30
M25*1.5
13-18
25.0
11
33/33
M27*1.5
13-18
27.0
12
33/33
M30*1.5
13-18
30.0
12
36/36
M32*1.5
15-22
32.0
12
41/42
M32*1.5
18-25
32.0
12
41/42
M36*1.5
18-25
36.0
12
45/42
M40*1.5
22-33
40.0
15
45/42
M50*1.5
32-38
50.0
17
62/62
M63*1.5
39-45
63.0
20
75/65
M72*2
42-52
72.0
25
/
M75*2
42-52
75.0
25
/
M75*2
50-59
75.0
25
/
M80*2
60-70
80.0
28
/
M88*2
60-70
88.0
28
/
M100*2
80-94
100.0
28
/
M114*2
80-94
114.0
28
/
