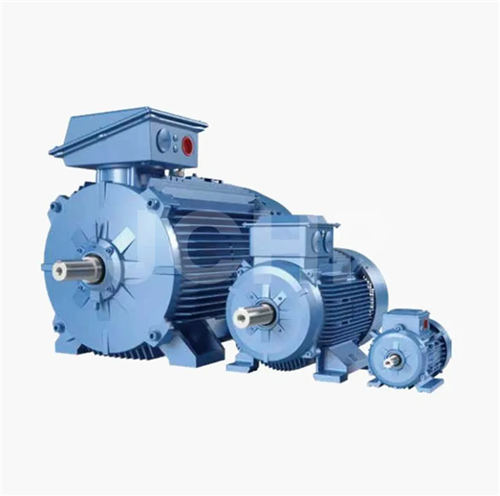

M2BAX – Low Voltage General Performance Motors
M2BAX – Low voltage general performance motors are ABB high efficiency products. ABB M2BAX Motors are designed for both the Chinese market and export. Product development is on ABB strong R&D platform. The design is in line with international IEC standards and China local GB standards. The efficiency level reaches IE3 and IE2, equivalent to Grade 2 and Grade 3 (GB18613-2012).
ABB M2BAX Motor is specially designed for OEM customers, mainly integrated with fans, pumps and gear boxes. Main applications include Water & Waste water treatment, HVAC, Food & Beverage, Textile, Power, Pulp & Paper, Metal and others industries. The high quality of ABB Electric Motors and the excellent service of ABB continuously make value for the customers.
Technical Parameters：
Machine base height
80-355mm
Output power
0.18KW -315kW
Energy efficiency class
IE2/IE3 /IE4
Number of poles
2, 4, 6, 8 poles
Installation
B3, B5, B35, etc.
Machine base material
cast iron
Insulation level and temperature rise
F/B
Protection grade
IP55
Electric Motor ABB M2BAX Series is designed with wound rotor construction, enhancing its capabilities when used in conjunction with ABB inverters. It is an energy-efficient motor with low power consumption, making it cost-effective. Suitable for general industrial applications.
