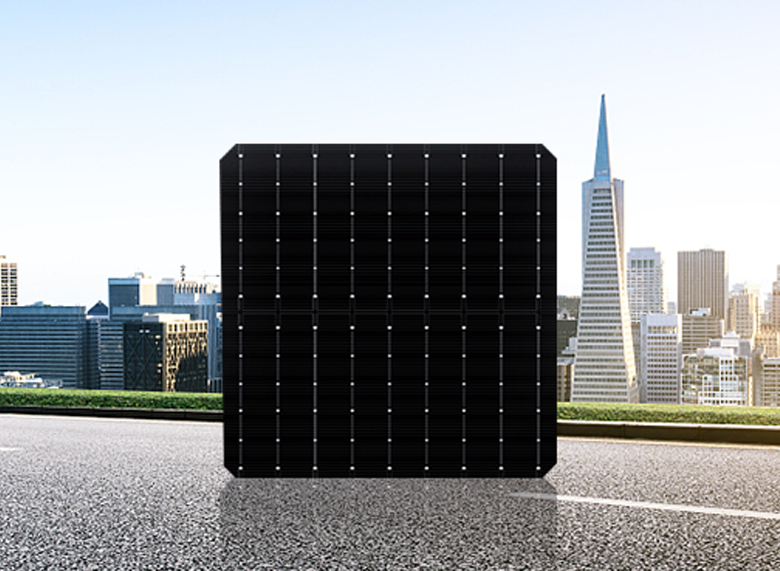

M6 Solar Cell
M6 MBB P-type double-sided half cell has high precision, high flatness screen printing, higher welding ability.After parallel resistance test, effectively reducing of heat spot effect, sorting into 15 grades according to each piece, accuracy up to 0.1%±.It through strict tensile test, with good welding ability, excellent PID resistance, efficiency up to 22.9%.
Features Of The M6 Solar Cell
Higher Conversion Efficiency
Solar Cells with half-cell technology has higher conversion efficiency than the full cell
Lower Rated Operating Temperature
Compared with the full cell module, the half solar cell module’s temperature is 2-3 degrees lower, and the hot spot temperature is 10-20 degrees lower.
High Flatness Screen Printing, Higher Welding Ability
M6 solar cells MBB P-type double-sided half cell has high precision, high flatness screen printing, higher welding ability.
Types Of The M6 Solar Cells For Sale
166-83mm 9BB mono Mono P-type Single-sided Half Cell
The size of the M6 solar cell is 166-166mm. The M6 solar cell can significantly increase the output power of the module, which is another leap after the G1 size. M6 solar cell can reduce the cost of modules, which is an effective way to reduce the cost of electricity. M6 + 22.5% PERC + half cell + MBB boosts the power of the module in the 4.5 era.
Dimension
166mm*166mm±0.25mm
Thickness (Cell)
190±30μm
Front (−)
9*0.0.08±0.03mm busbars(Silver), 120 finger grids, Blue anti-reflecting coating (silicon nitride)
Back (+)
width of back electrode(silver) 1.3±0.25mm, finger grids(aluminum), dotted laser design
166-83mm 9BB Mono P-type Bifacial Half Cell
The P-type double-sided half cell can contribute up to 30% of the gain during the power generation process of the module. The half-cell technology has higher conversion efficiency than the full cell and has a lower rated operating temperature. Compared with the full cell module, the half cell module’s temperature is 2-3 degrees lower, and the hot spot temperature is 10-20 degrees lower. At the same time, it has low shadow occlusion loss.
Dimension
166mm×166mm±0.25mm
Thickness (Cell)
190±30
Front Side (−)
9 busbars(silver), width 0.1±0.03mm, 124 finger grids, Blue anti-reflecting coating(silicon nitride)
Rear Side (+)
width of back electrode(silver) 1.3±0.25mm, finger grids(aluminum), dotted laser design
Applications of the M6 Solar Cells
Sunrise M6 cell is mainly used for solar modules including Godzilla, Ninja, Jellyfish series, etc. After high-precision packaging, the maximum power of the module is 455w. The all-black module is widely used in residents and urban roofs. The bifacial module is suitable for various installation scenarios such as Agriculture and lights complementary power station, ground power station, water surface power station, roof power station, highway soundproof wall, carport, etc.
