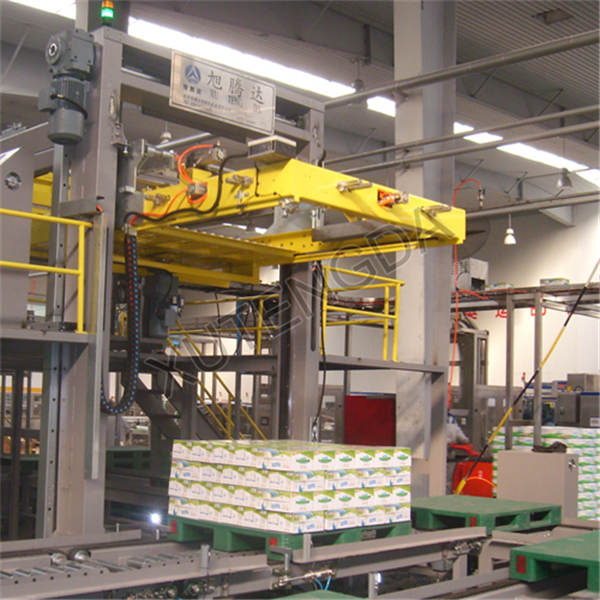

Mechanical Palletizer XMD-ZS35
Lower-bed automatic palletizer put the cartons on the pallet in order, automatic palletizing, can pallet several layers, then will push the pallet out, easily for the forklift transport to warehouse for storage. It adopts separate stripping plate, the parts of the equipment: carton put in, collating unit, lifting and pallet device, pallet stacking, automatic supply device and the full pallet evacuator device.
Mechanical palletizer adopts PLC and touch screen control, to realize the intelligent operation and management. When the door open, the equipment stop work, then it can protect the safety of the workers. The adjustment of stacking way is simple and easy.
Main Technical Specification
Type
XMD-ZS35
Rated loading
150kg
Recyle time
300times/hour
The height of the pallet
up to 1700mm
The size of the pallet
1200mm*1200mm
The height of the pallet
Up to 2m
The box quantity of each layer
The largest L#W:1200*1200mm
Grasp type
Self-closing sucker
The size of the carton(L*W*H)
Support 1200*1200*1700mm
Repeated positioning accuracy
±5mm
Voltage
380V、50HZ
Air pressure/Air consumption
6kg.f/cm 300nl/min
Power
12kw
Size
L6500*W5000*H3250
Weight
3500kg
