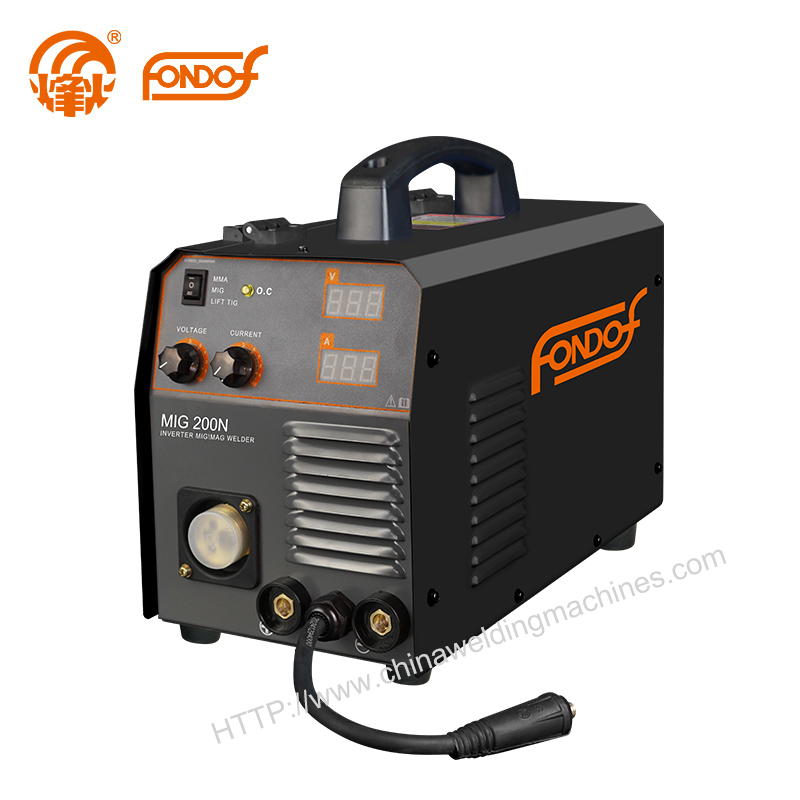

MIG 200N WELDING MACHINE
Features:
IGBT Inverter technology
1KG&5KG Gas and Gasless wire
MIG ,MMA function
With Lift ARC TIG function
With synergic function
constanct stable arc
Easy to operate ;
Parameters
MIG 200N
Input Voltage (V)
AC 220V
Frequency (Hz)
50/60Hz
Phase
1
Rated Input Current (A)
MIG :39 MMA :27
Rated Input Power (KVA))
MIG :8.4 MMA :6
Wire feeding speed（M/MIN)
2~14
Welding Current (A)
MIG :50-200 MMA :50-160
Welding voltage(V)
MIG:16.5~24 MMA :22~26.4
No-load Voltage (V)
60
Rated Duty Cycle(%) 40℃
20%
Wire diameter (mm)
0.8/1.0
Protection Class
IP21S
Insulation Grade
F
Dimension(mm)
493*283*465
Weight(Kg)
8.5
A MIG/MAG welding machine is welding equipment that can be used for both MIG and MAG welding. It consists of a power source, a wire feeder, and a welding gun or torch. The power source generates the electrical current needed for welding, and the wire feeder feeds the wire electrode into the welding gun or torch. The welding gun or torch is used to direct the arc to the workpiece, while the shielding
