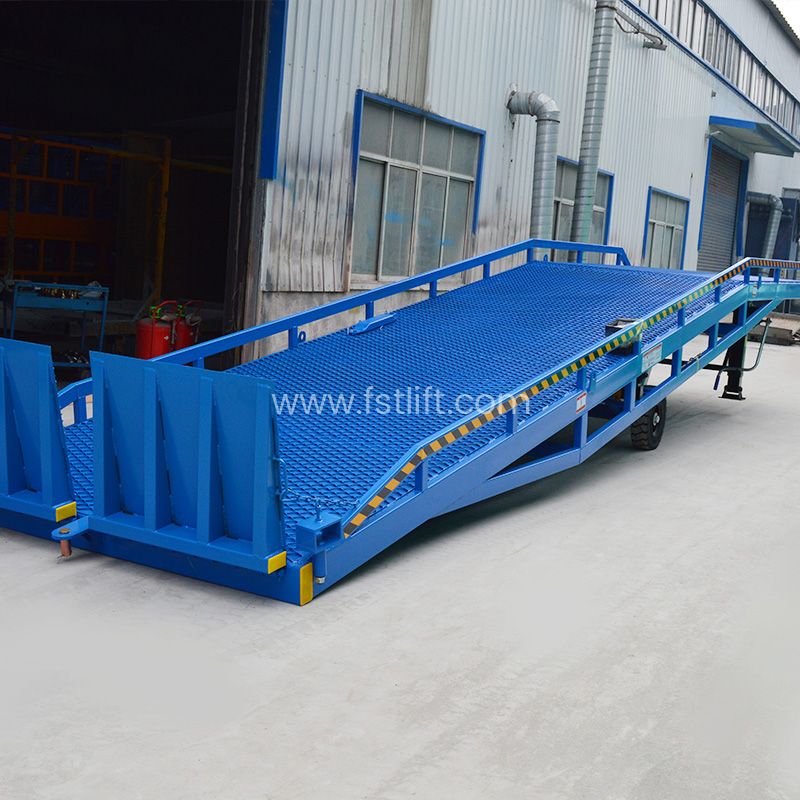

Mobile Yard Ramp
Mobile yard ramp is an auxiliary equipment for cargo loading and unloading used in conjunction with forklifts. The heavy duty loading ramp can allow forklifts and other transportation vehicles to drive directly into the truck to load and unload goods in batches, which can be accomplished by only one person. The mobile yard ramp is mainly suitable for warehouses, stations, logistics warehousing, etc.
Mobile yard ramp features
1. Fully hydraulic drive, simple operation and good stability
2. Excellent anti-skid performance, better gradeability and maneuverability
3. Good sealing and long service life
4. Quality Assurance: Products have passed ISO and CE certification
Parameters
Model
Load(T)
Dimensions(mm)
Power
Lift range(mm)
Weight(kg)
FYDCQ-8T
8
11300*2100*1100
Manual
1100-1750
2300
FYDCQ-10T
10
11300*2100*1100
Manual
1100-1750
2400
FYDCQ-12T
12
11300*2100*1100
Manual
1100-1750
2700
