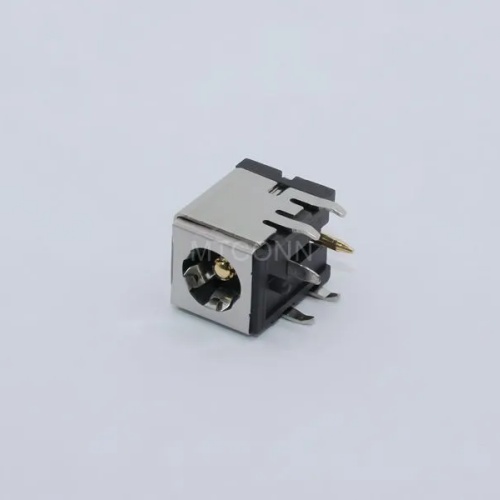

MTDC48-102AAB-27A18 DC Jack Connector
This product is a high-performance DC power socket connector, designed for electronic devices requiring high-current transmission. It features high-temperature-resistant materials and a multi-terminal design, supporting an electrical rating of 20V/7A. With excellent durability and environmental adaptability. Its compact structure and plating process ensure stable signal transmission, meeting the demands of industrial, consumer electronics, and automotive applications for highly reliable power interfaces.
DC Jack Connectors Features
High Current Capacity: Supports a rated current of 7A, meeting the power needs of high-power devices.
Strong Environmental Resistance: Operating temperature range of -25℃ to +70℃, suitable for harsh conditions.
Long Lifespan Design: Passed 5,000 insertion/extraction durability tests, ensuring long-term stability.
Safety Protection: Minimum insulation resistance of 100MΩ, withstands 500V AC, ensuring electrical safety.
Compact Layout: Multi-terminal integrated design, ideal for high-density PCB installations.
Argument
Material of Main Part/Color
PA9T/ Black
Number of Contacts
2 Pin
Rated Current
7.0A
Rated Voltage
20V
Contact Resistance
30 MAX.
Insulation Resistance
100 MIN.
Insertion Force
3N
Withdrawal Force
30N
Service Life
5000Times
Operating Temperature
-25℃ ~ +75℃
