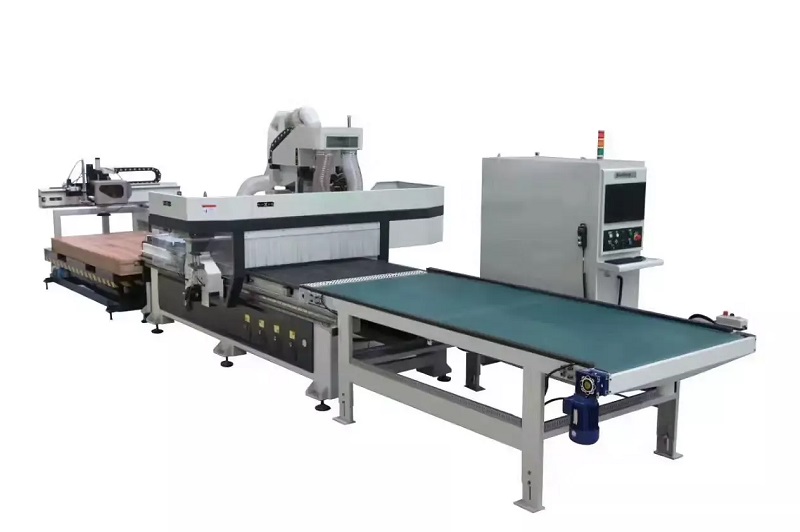

Nesting ATC CNC Router ST1325N

Nesting ATC CNC Router ST1325N

CNC Router Machine Features：

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.

World’s first class components–Italian high-frequency electric spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.

Truly versatile–nesting, routeing, vertical drilling and engraving all in one.  It is well-suited for panel furniture, office furniture, cabinets production.

CNC Router Application:

Wooden door, cabinet, panel furniture, closet, etc. Suitable for standard or bespoke production.

Technical Parameters

Model

ST1325N

Traveling Size

1300*2500*200mm

Transmission

X/Y rack and pinion drive, Z ball screw drive

Traveling Speed

≥45000mm/min

Working Speed

≥25000mm/min

Spindle Power

HSD 9 kw ATC spindle

Spindle Speed

24000r/min

Driving System

Yaskawa

Controller

Syntec
