PCB Assembly Service

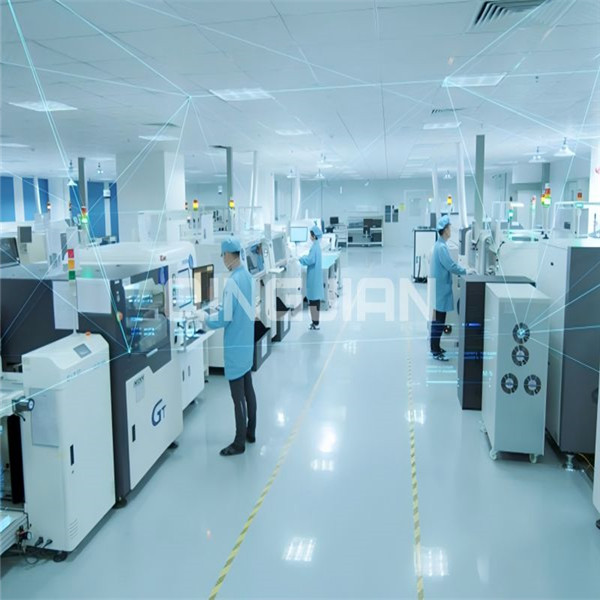

We have 5 SMT (Surface Mount Technology) production lines equipped with brand-new imported Samsung S1 and S2 high-speed placement machines, fully automatic solder paste printing machines, ERSA ten-temperature zone reflow ovens, AOI (Automated Optical Inspection), SPI (Surface Mount Inspection), X-RAY, and other high-end equipment. We are particularly skilled in producing high-precision and complex single boards, and have actual performance in producing ultra-complex single boards. We can mount SMD (Surface Mount Devices) components including 0201 and 01005, as well as ultra-high-precision QFP and BGA chips with a pin pitch of 0.3mm. For specific details, please refer to the “Professional PCBA” section mentioned above.
With years of manufacturing experience and cutting-edge facilities, we are your trusted partner for turnkey PCB assembly.
PCBA Production Capacity
Daily production capacity of SMT
4 million points
SMT production line
5 items
Material throwing rate
Specific resistance 0.3%
IC type without material throwing
Single board type
POP/Regular Board/FPC/Rigid-Flex Board/Metal Substrate
Specification of mounted components
Minimum package size for attachment
01005 Chip/0.4 Pitch BGA
Minimum device precision
±0.04mm
IC-type chip placement accuracy
±0.03mm
For more details please contact Qingjian Electronics
