Pipe Fitting Mould: A Complete Guide

What Materials Are Commonly Used to Make Pipe Fitting Moulds?

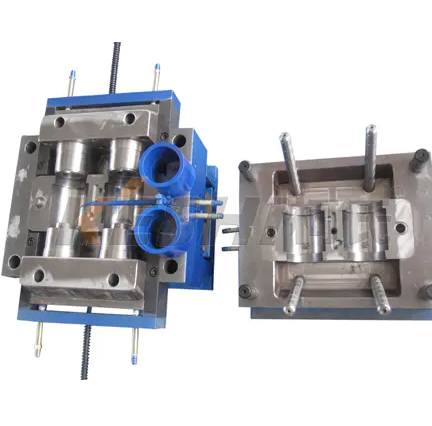

Pipe fitting moulds are an essential tool in the production of pipe fittings, such as elbows, tees, reducers, and couplings. The materials used to make these moulds are crucial for ensuring the durability, precision, and quality of the pipe fittings produced. Here are the most commonly used materials for pipe fitting moulds:

Steel: High-quality steel, particularly alloy steels or tool steels like H13, is the most commonly used material for pipe fitting moulds. Steel is chosen for its high wear resistance, strength, and ability to withstand high temperatures during the injection moulding process.

Aluminium: Aluminium moulds are often used for less demanding applications where the material cost and weight need to be reduced. They are lighter than steel and offer faster cooling times, but they may not be suitable for high-volume production runs due to wear and tear.

Stainless Steel: Stainless steel is used when high corrosion resistance is needed, especially for pipe fittings intended for industries like chemicals, oil, and gas, where pipes and fittings are exposed to harsh environments.

Copper Alloys: For certain applications where higher electrical or thermal conductivity is required, copper alloys may be used to manufacture pipe fitting moulds. These are less common but offer specific advantages in heat transfer or other specialised needs.

Tooling Alloys: Tool steels, like D2 or A2, are also used in high-precision pipe fitting moulds due to their toughness and ability to hold sharp, fine details over many cycles.

Beryllium Copper: In high-heat applications, beryllium copper is sometimes used for its excellent thermal conductivity, although it’s more expensive and typically reserved for very specific industries requiring efficient heat dissipation.
