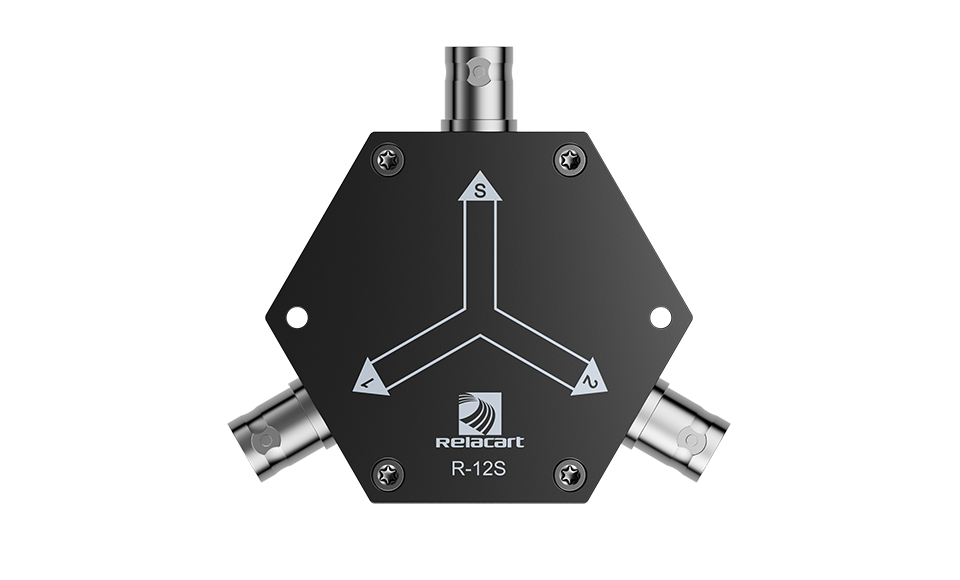

R-12S Antenna Divider
Relacart R-12S Antenna Divider is a versatile RF accessory designed to split one RF signal into two outputs or combine two RF signals into one output. It also functions as an RF signal amplifier, transferring offset voltage to the front for enhanced signal stability, making it an ideal choice for professional antenna systems.
R-12S can separate 1 RF signal to 2 RF signals output or combine 2 RF signals to 1 RF signal output. Also it is a RF signal amplifier can transfter the offset voltage to front, is a ideal antenna system accessory.
Frequency range: 400MHz-1000MHz
Abatement: -3.5dB, ±1dB
Isolation: >-20dB
Impedance: 50 ohms
Maximum passing voltage/current: +50V DC/1.50A
Interface: BNC
Size: 65mm(W)x50mm(L)x20mm(H)
Weight: about 35g
The Relacart antenna distribution system has been used on site for many times and the enterprise has accumulated valuable experience for a long time to achieve this series of products.
