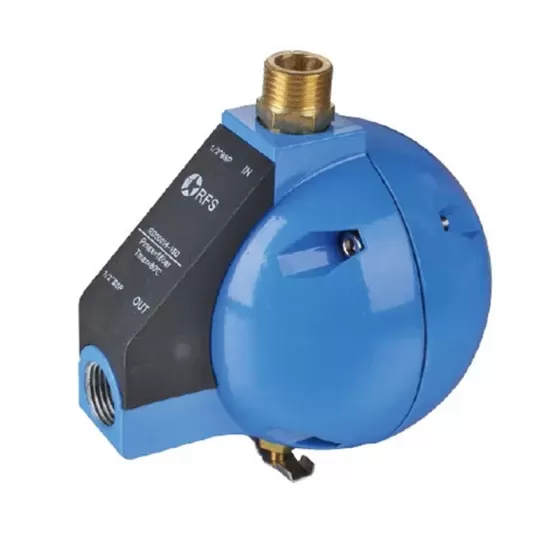

RD50016-15G Float Type Drain Valve
A RD50016-15G Float Type Drain Valve is an automatic device used to remove condensate (water, oil, or other liquids) from compressed air systems, steam systems, and other industrial processes where condensate collects. These valves operate based on the liquid level within a chamber, using a float mechanism to open and close the valve.
Key Features Of Float Type Drain Valve:
Automatic Operation: Operates without manual intervention, ensuring continuous and efficient removal of condensate.
Reliability: Designed to operate reliably in various conditions, including high pressure and temperature environments.
Durability: Typically made from corrosion-resistant materials such as stainless steel to withstand harsh conditions.
Maintenance-Friendly: Simple design allows for easy maintenance and inspection.
Product Details
Model
RD50016-15G
Connection ports
G1/2″
Seal material
NBR
Media
Water
Working pressure
0-16Bar
Max. pressure
20Bar
Working Temp.
-10℃~80℃
Valve body
Aluminum
Working type
Leverage and Buoyancy Type
