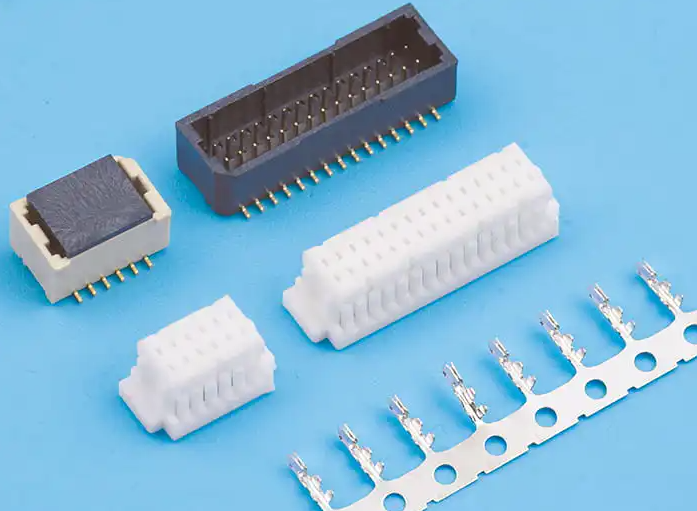

Selecting Proper WTB Wire to Board Connector
1、CKT: 2Pin to 25Pin
2、Current rating: 0.5A AC/DC
3、Voltage rating(max): 30V, AC/DC
4、Working Temperature: -25°C~+85C,
(Including temperature rise in applying electrical current)
5、Contact resistance: Initial value s20mΩ
After environmental testing≤40mΩ
6、Insulation resistance: 2100MΩ
7、Withstand voltage: 200VAC(rms)
8、Applicable wire: AWG #32 to #28
9、Applicable PCB board thickness: 1.6mm to 2.0mm
