Side Core Pulling Price Factors in Mold Design
Why Side Core Pulling Influences Mold Cost
In injection mold manufacturing, certain plastic products include side holes, undercuts, or structural features that cannot be formed using a simple mold opening direction. In these situations, mold designers often incorporate a Side Core Pulling mechanism. This structure allows part of the mold to move sideways during the mold opening stage so the molded product can be released properly.
Because this mechanism introduces additional moving components into the mold, the Side Core Pulling price is usually higher than molds with simpler structures. The system requires extra design work, additional machining processes, and precise assembly to maintain smooth movement during repeated production cycles.
Main Components of a Side Core Pulling System

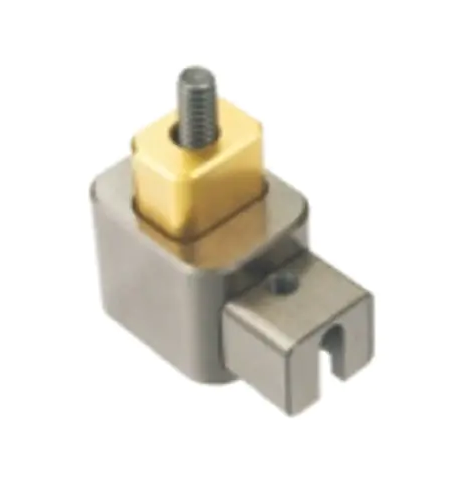

A typical Side Core Pulling mechanism includes several parts that work together inside the mold structure. These parts often include a sliding core block, angle pins, guide rails, return springs, and supporting plates. Each component helps guide the side core as it moves in and out of the mold cavity.
During the molding process, the side core forms the side features of the plastic product. When the mold begins to open, the Side Core Pulling mechanism activates and pulls the core away from the molded part. This movement prevents the product from being trapped in the mold.
Because these components must move precisely and repeatedly, mold manufacturers often use durable materials and accurate machining techniques when producing the system.
