Single Universal Joints

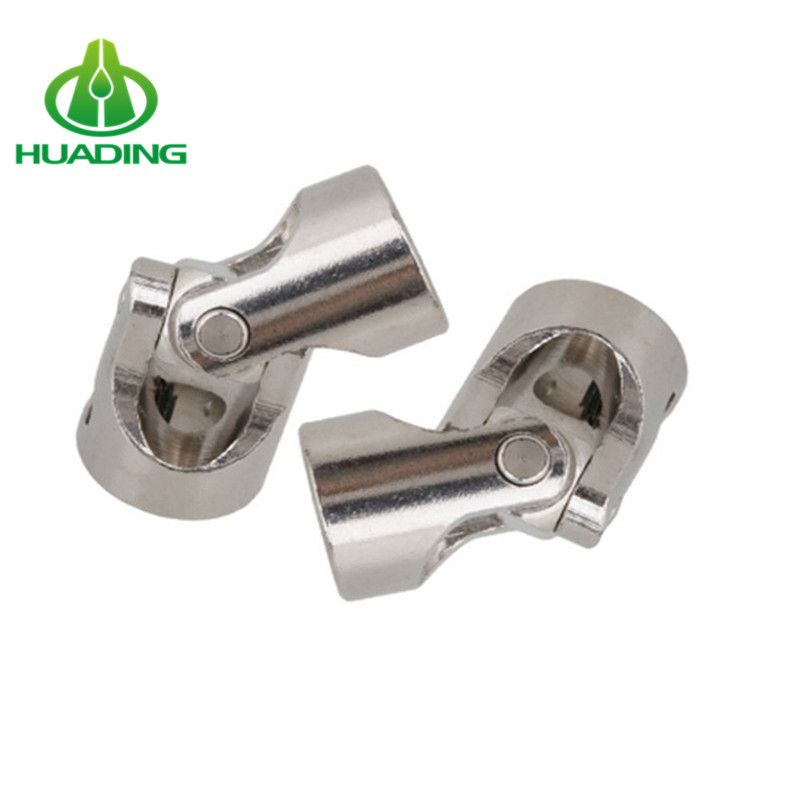

HUADING WSD Type Single Universal Joints is standard stainless steel universal joints, manufactured from AISI 303 and AISI 416 stainless steel for increased durability and better performance. Stainless steel single universal joints come as standard with either plain bores or keyed bores.
All components are rigorously heat treated and precision machined to close tolerances.
Model:
WSD Type Single Universal Joints
· D: 16mm – 75mm
· dmax: 10mm – 42mm
· Rated torque: 11.2N.M – 1120N.M
· L: 22mm-84mm
· Max. angle: 90 degrees
· Max. speed: 4000 rpm
Features:
1. It is suitable for transmission coupling space on the same plane of two axis angle beta β≤45°, the nominal torque transmission 11.2-1120N.
2. Each section is between the largest axis angle of 45º.
3. The finished hole H7, according to the requirements of key seating, has six square holes and a square hole.
4. The angle between the two axes is allowed in a limited range as the work requirements change.
