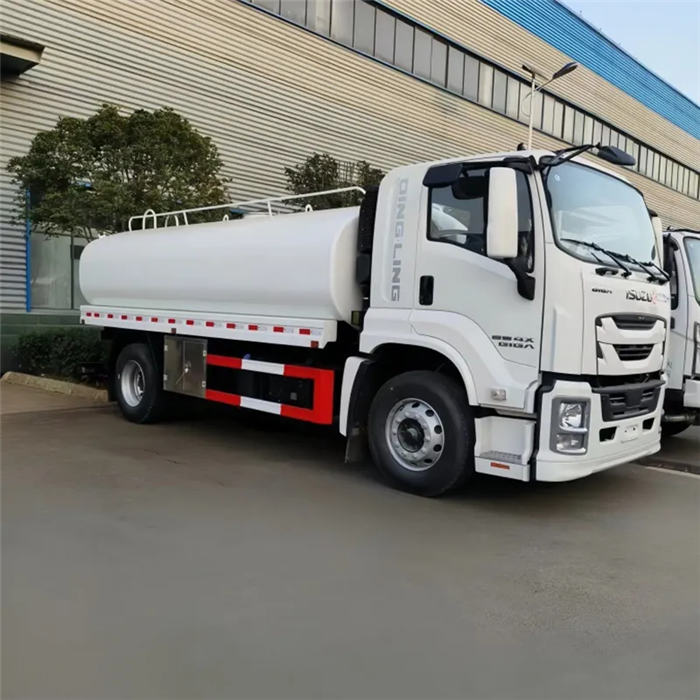

SPRINKLER TRUCK
With sprinkling water, dust removal, pesticide spraying, guardrail washing, water transport, emergency fire and other functions.
It is driven by the engine to drive the gearbox, and the force extractor installed on the gearbox drives the sprinkler pump, which generates the main power and sprays the liquid inside the tank through the pipe network. Self-priming height :≤7m, sprinkler width :≥20m, maximum range :≥28m;
Adjustable into column shape, range ≥28m; Can also be adjusted into fog, range ≥5m.
Water Tanker Truck can be sprayed before and after spraying, the front is equipped with a duck-shaped nozzle or round head nozzle, the back is equipped with a cylindrical sprinkler nozzle or showerhead nozzle, and the rear has a working platform equipped with a high-pressure water cannon.
Tank production: blanking, automatic welding, head spinning forming, tank rolling forming and other production processes.
Tank material: made of high quality carbon steel plate. 304 stainless steel can also be used according to customer needs.
The tank volume has 4cbm\6cbm\8cbm\10cbm\12cbm\15cbm\20cbm and so on.
Item
Description
Chassis brand
ISUZU brand
Condition
Brand new
Drive type:
6×4
Steering wheel
Left hand drive
Cab
Four-point hydraulic suspension cab,
Engine power(kw)
ISUZU 6HK1-TCH ;300HP engine
Fuel type
Diesel
Emission standard:
Euro 5
Transmission gear:
RTD-11509C With QH50 Flange power take-off;9 gears, manual
Tyre specification :
12.00R20
Wheelbase(mm):
4375+1400 mm
Oil tank capacity:
400L Aluminum alloy
Axle
7.5T ; 18T*2
Potable water body
Tank capacity
20000liters
Tank material
stainless steel 304 / Carbon steel sheet
Pump
Pump in pump out
Other
Pipes, valves, water outlet / Water Inlet,
We are a professional Sanitation Truck Supplier, more details please contact us!
