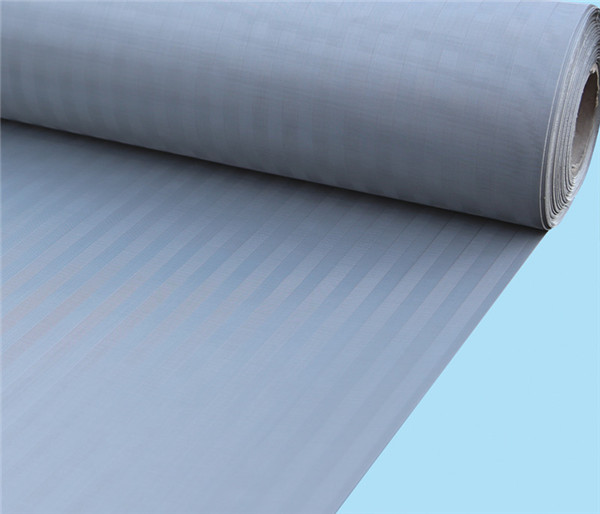

Stainless Steel Wire Mesh

Stainless Steel Wire Mesh

Stainless steel wire mesh is made of stainless steel wire through warp and weft woven.

Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.

With resistance for acid, alkali, high temperature and grind, acid resistance Wire Mesh is widely used in industries like petroleum, chemical, automotive, new energy, food, pharmaceutical and others.

According to the opening type and woven type, the stainless steel woven mesh can be divided into square mesh(plain weave, twill weave), dutch weave mesh(plain dutch weave, twill dutch weave, double warp dutch weave, reverse plain dutch weave, reverse twill dutch weave, optimized design).

Square mesh: generally the wire diameter of warp and weft are the same, the mesh count of warp and weft are the same(rectangular mesh are not the same for warp and weft mesh count), weaving type can be divided into plain weave and twill weave.

Dutch weave mesh: The stainless steel dutch weave mesh are also called dutch mesh, dutch cloth. It is made of high quality stainless steel wire. The main feature is that the wire diameter and density in the warp and weft direction are quite different, so the mesh thickness, filtration accuracy and the life time are obviously improved compared with the suqare mesh, specially on the filtration rate, it is not realized by the square mesh. The reverse dutch weave mesh is a special filter mesh, with warp mesh count obviously bigger than weft mesh count, and the warp wire diameter smaller than weft wire diameter. fine Epoxy Coated mesh is more difficult to weave than the plain dutch weave mesh, with high mesh strength, high filtration accuracy and high efficiency. The ducth weave mesh is mainly used in industries like aerospace, petroleum, chemical industry and others. It is suitable for filtration of plastic wire drawing machine, tape casting machine and film coating machine, such as plastic woven bags, plastic film, ink box, sewage treatment, etc.

Product characteristics

1. YKM stainless steel wire mesh product characteristics

2. Flat mesh surface, tightly weaved and uniform color

3. Uniform mesh opening, high and stable filtration accuracy

4. Accurate control of net weight per unit area to gram

5. Good formability mesh surface

6. Any length can be provided by continuous loading

7. With the most advanced weaving equipment in the industry

Product advantages

YKM’s high-precision fine mesh products are produced by imported looms from Germany and Japan and new intelligent NC looms independently developed. The mesh are with the characteristics of good mesh flatness, high filtration accuracy and stable performance. Precision pressure filters, fuel filters and vacuum filters made by deep processing are widely used in industries like aerospace, petroleum, chemical, fiber, rubber, metallurgy, medicine, food and so on.
