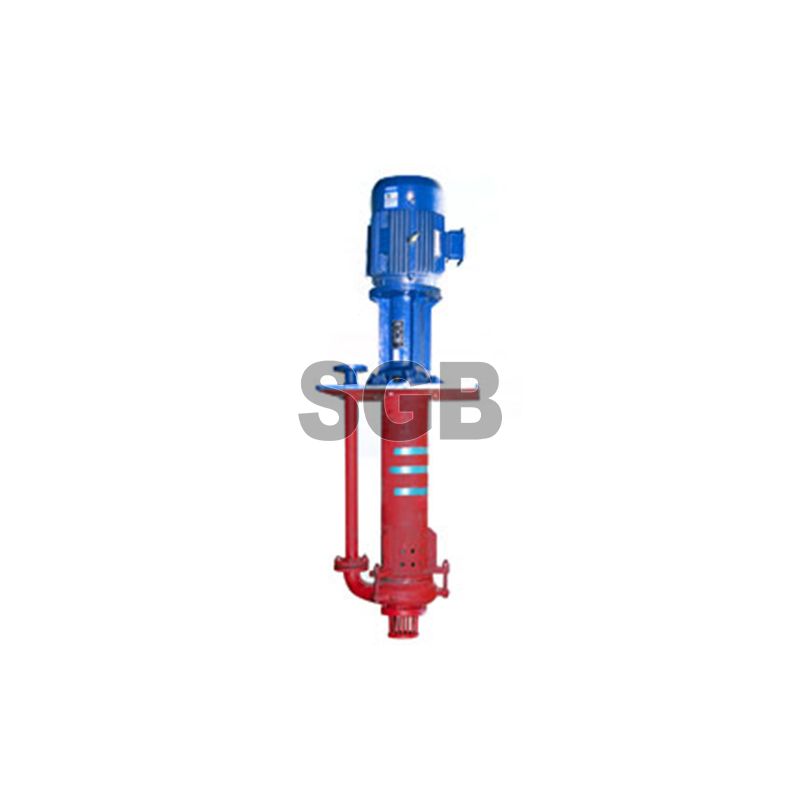

TL Series Vertical Pit Desulphurization Pump
TL Series Vertical Pit Desulphurization Pump
Product Description
– Single stage, single suction, vertical centrifugal pump
– Wet parts such as casing, impeller, liner plate in anti-abrasion and corrosion-resistant high chrome cast iron alloy.
– For fluid of high concentration, inlet agitator is designed
-According to the depth of the pit, suction pipe can be added to the pump inlet.
– Hydraulic optimization design and stable operation
Technical Specifications
Performance and Main Technical Datas of TL Desulphurizations Pumps
Type
Allowable max.power of ass.motor(kW)
Clear water performance
Particle max.
Size handled occasionally
(mm)
Pump weight
(kg)
Q
Capacity
(m3/h)
H
Head
(m)
n
Speed
(r/min)
Max.eff.
(%)
(NPSH)r
(m)
150TL-A35
30
99-364
3.0-17.9
490-980
69.0
/
15
712
100TL-A34
45
74-293
5.5-36.8
700-1480
65.8
/
14
502
80TL-A45
110
59-286
12.5-81.6
700-1490
58.4
/
15
785
80TL-A36
45
50-201
7.3-45.5
700-1480
58.2
/
12
645
65TL-A40
45
30.2-142.8
10.2-62.6
700-1480
50.0
/
12
658
65TL-A30
18.5
18-98
5.9-34.7
700-1470
53.7
/
8
436
50TL-A45
55
21.9-117.3
10.4-78.4
700-1480
39.9
/
9.5
778
50TL-B40
30
15-65
8.6-58.3
700-1470
34.1
/
9
502
50TL-A35
22
19-87
6.8-45.3
700-1470
48.1
/
15
498
40TL-A35
18.5
9.4-47.6
7.2-43.9
700-1470
38.7
/
7
524
40TL-B25
5.5
4.9-22.9
3.9-21.5
700-1440
37.6
/
8
225
40TL-A21
4
4.6-25.9
3.3-17.0
700-1440
44.6
/
10
210
25TL-A15
5.5
4.3-19.3
3.9-30.8
1390-2900
29.8
/
8
195
