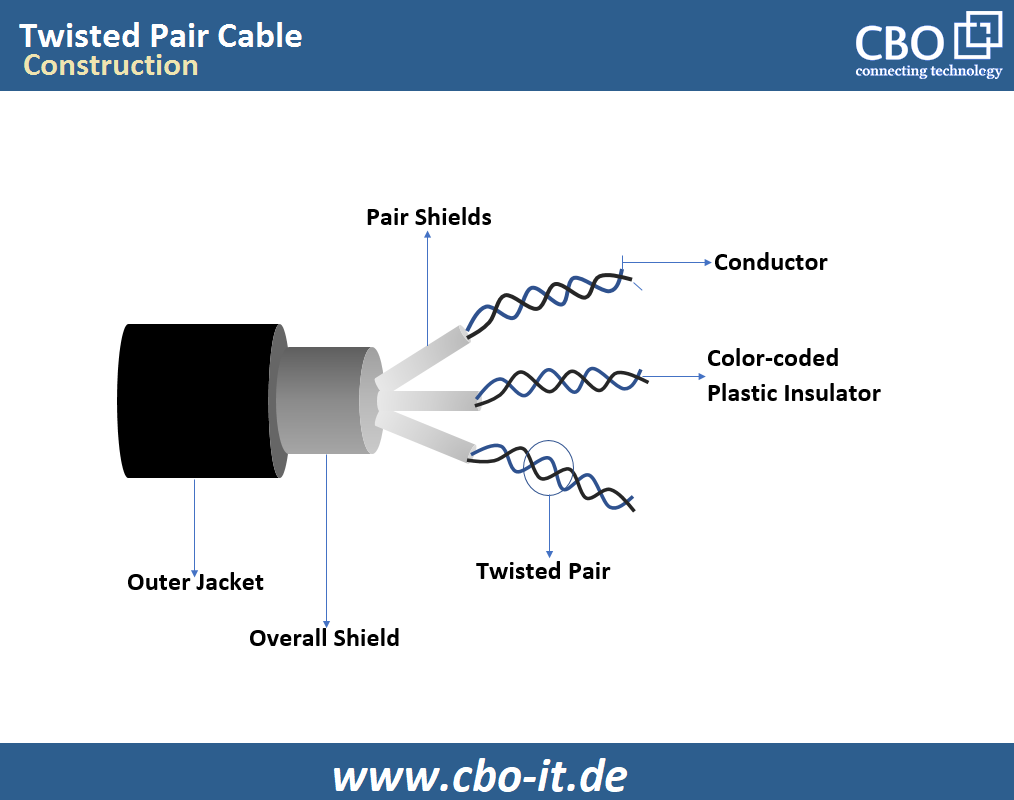

A Twisted Pair Cable is a networking Ethernet cable consisting of two insulated conductive wires in a twisted pattern. In a twisted pair cable, the set of wires run parallel to each other – a feature that helps improve electromagnetic compatibility.

In twisted wires, some noise signals go in one direction (sending) while the remaining noise signals go in the opposite direction (receiving). This method helps reduce the undesired impact of the magnetic field, and the effect of the external waves can be minimized due to different twists.
