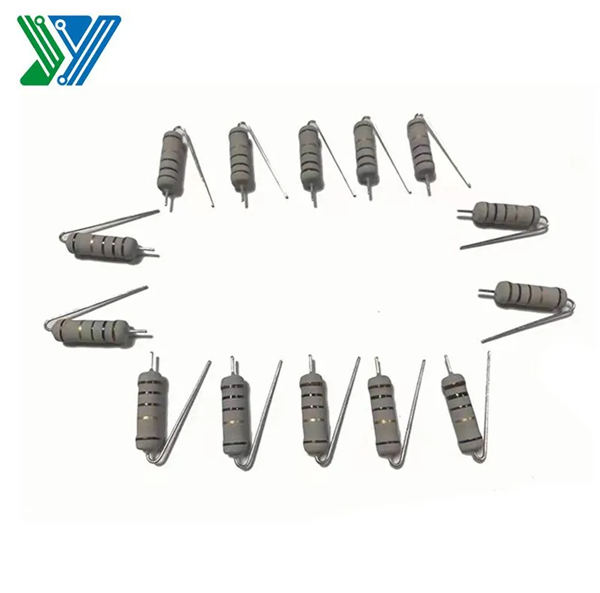

Wirewound Fuse Resistor
Product Description
A wirewound fuse resistor is a type of resistor designed to act as both a resistor and a fuse. This component is often used in electronic circuits to limit current flow and provide overcurrent protection. The Wire Wound Resistors construction involves winding a resistive wire around a ceramic or fiberglass core.
1. Good heat-durability,low temperature coefficient,low noise,high load and power,nonflammability
2. Can be Fusible during the stated time for protecting the circuit.once wording at the required overload voltage.
3. Operating ambient temperature:-55℃~+275℃
4. The surface is gray white nonflammable coating and indicate a black ring at the behind of the precision color ring
5. Resistance tolerance:+5%，+10%
Type
Resistance range
Dimensions（mm）
Max. working voltage
Max. overload voltage
Max.insulation voltage
L±1
D±0.5
d±0.05
H±1
1/2W
0R1~10R
9.0
3.2
0.55
26.0
150V
400V
250V
1W
0R1~10R
9.0
3.2
0.65
26.0
150V
400V
250V
2W
0R1~15R
11.0
4.5
0.70
26.0
150V
400V
250V
3W
0R1~22R
15.0
5.0
0.70
26.0
350V
600V
500V
4W
0R1~27R
17.0
6.0
0.70
26.0
350V
600V
500V
5W
0R1~27R
17.0
6.0
0.75
26.0
350V
600V
500V
