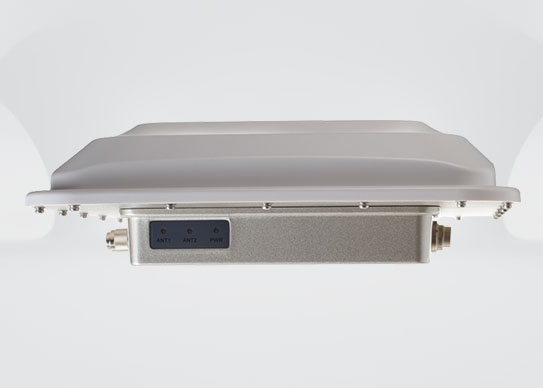

XC-RF850 UHF RFID Integrated Reader
Invengo’s XC-RF850 is a compact and fully integrated RAlN RFID(UHF) reader that delivers excellent performance at an incredible value. The UHF RFID reader has a sleek design and is easy to install. The XC-RF850 rfid scanners for sale is based on Linux for ease of programming and communication. With multiple connectivity options, the UHF handheld reader is ideally suited for vehicle, personnel and asset tracking applications.
XC-RF850 UHF RFID Integrated Reader Main Features
Low profile -7dBi integrated antenna reader
Circular Polarization
Second RF port for additional antenna
TCP/IP and RS-232 Communication
Onboard GPIO or Wiegand Output
API: JAVA, .NET, C++
Protection Level: IP65
XC-RF850 UHF RFID INTEGRATED READER SPECIFICATIONS
al Parameters
Dimensions
291 x 291 x 86 mm
(11.4 x 11.4 x 3.4 in)
Weight
2 kg (4.4 Lbs)
Case Material
Aluminum Alloy/ASA
Environmental
Operating Temperature
-20˚C to 70˚C (-4˚F to 158˚F)
Storage Temperature
-40˚C to 70˚C (-40˚F to 158˚F)
Humidity Range
5% to 95%, non-condensing
IP Rating
IP65
Power Source
Adapter (not included)
AC input 100V-240V
1.5A, 50 – 60 Hz; DC output 24V
± 5%/2.5A
Power Consumption
Approx. 12W
Power over Ethernet
IEEE 802.3at
Communication/Network
Communication Interface
RS-232, 10/100 Ethernet
Network Protocol
TCP/IP, DHCP
UHF RFID
Supported Protocols
EPC global UHF Class 1Gen2,
ISO/IEC 18000-63
Frequency
840 to 960 MHz
(Support Global Frequency)
Performance Parameter
GPIO
2 inputs, optically isolated
3 relay control outputs or 2 Wiegand
outputs with 26/34/66 type
Operating Mode
Single/Dense Reader mode
RF Output Power
-9 to -30 dBm, software configurable
Antenna
Non-condensing Gain
-7 dBi integrated antenna
Polarization
Circular
Antenna Ports
1x RP-TNC (Male)
